Specification

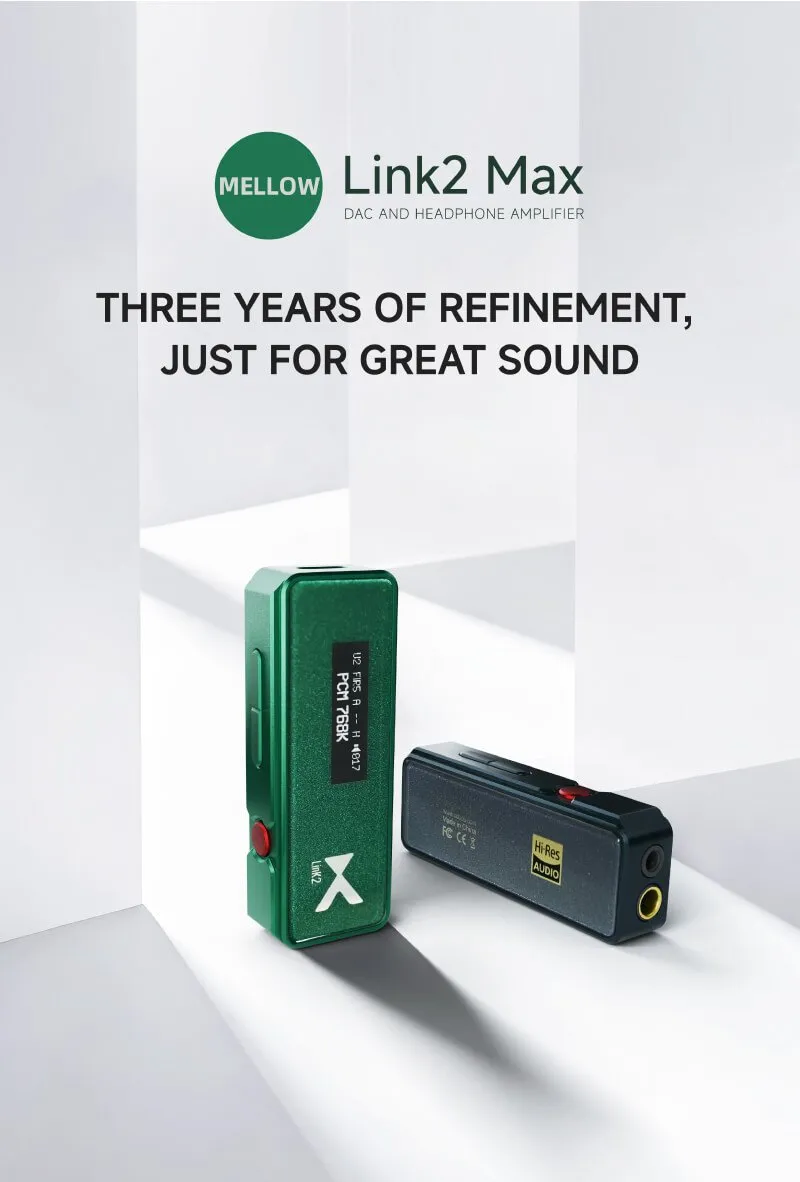

| Model | Link2 Max |
| DAC Chip | Dual Cirrus Logic CS43198 |
| Amp Chip | Dual SGMICRO SGM8262 |
| Input Interface | Type-C |
| USB System | UAC1.0/UAC2.0 |
| Sampling Rate | PCM 32Bit/44.1k-768kHz, DSD256 |
| Headphone Out | 3.5mm Single-ended / 4.4mm Balanced |

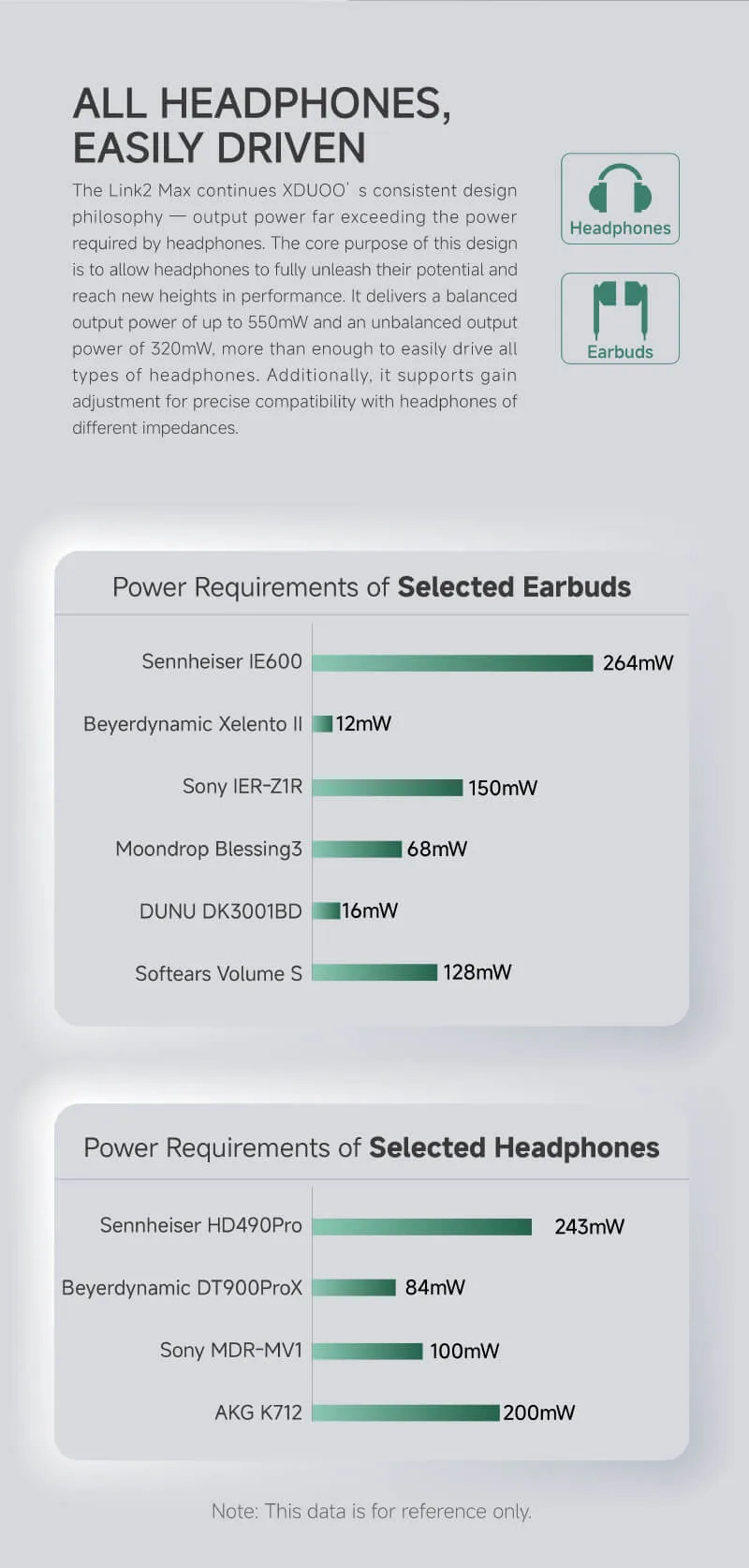

| Output Power | 32Ω → 320mW (Unbalanced) / 550mW (Balanced) |
| Frequency Response | 20Hz – 20kHz (±0.5dB) |

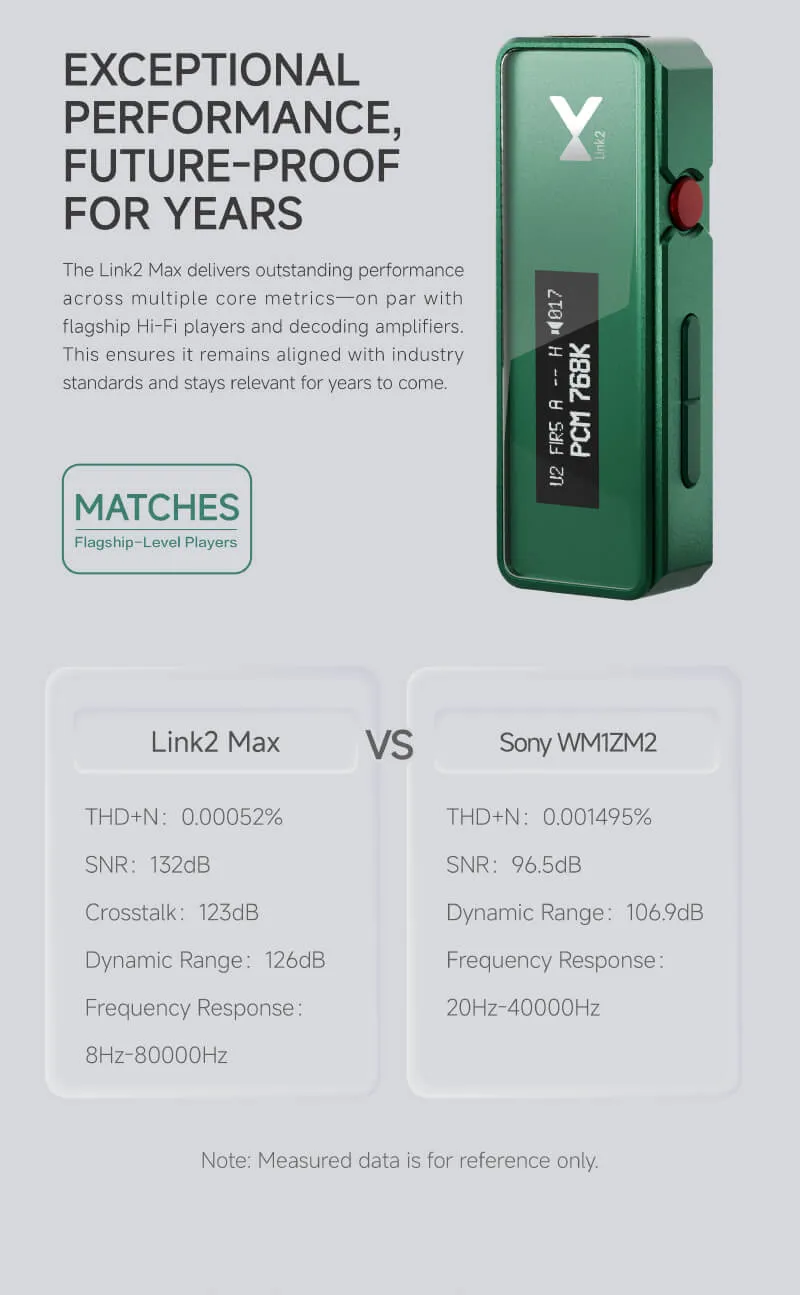

| SNR | ≥126dB (Unbalanced) / ≥130dB (Balanced) |
| THD+N Ratio | 0.00052% |
| Crosstalk | ≥123dB |
| Warranty | 1 year on manufacturing defects |

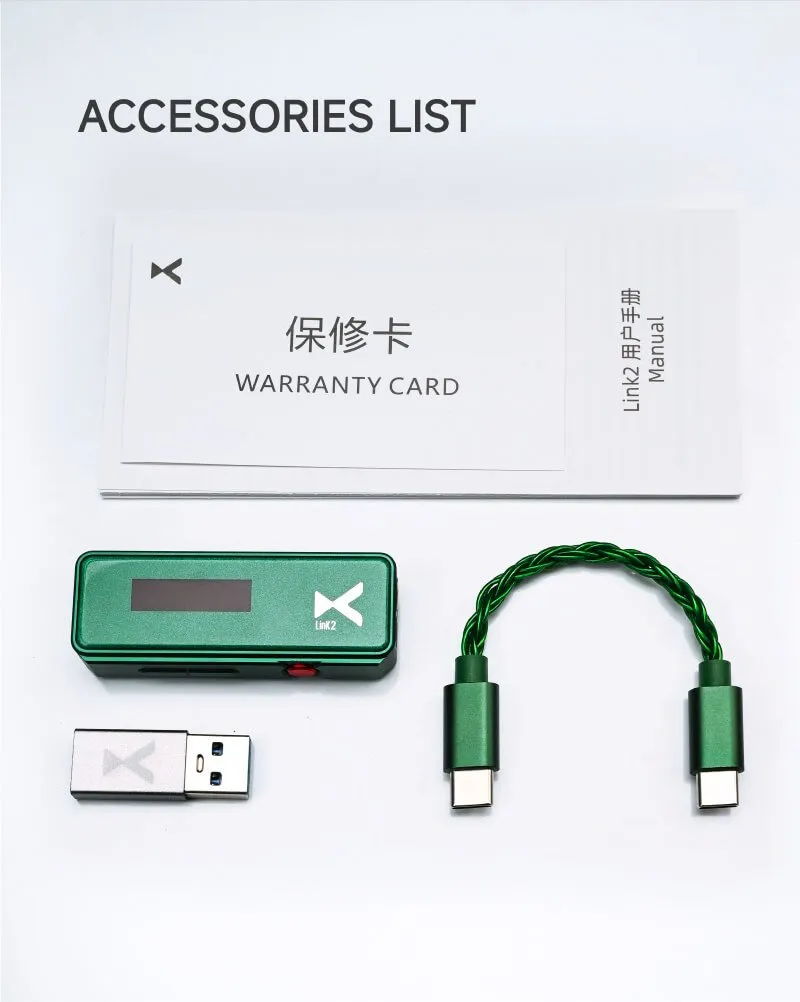

Package list
| Link2 Max * 1 |

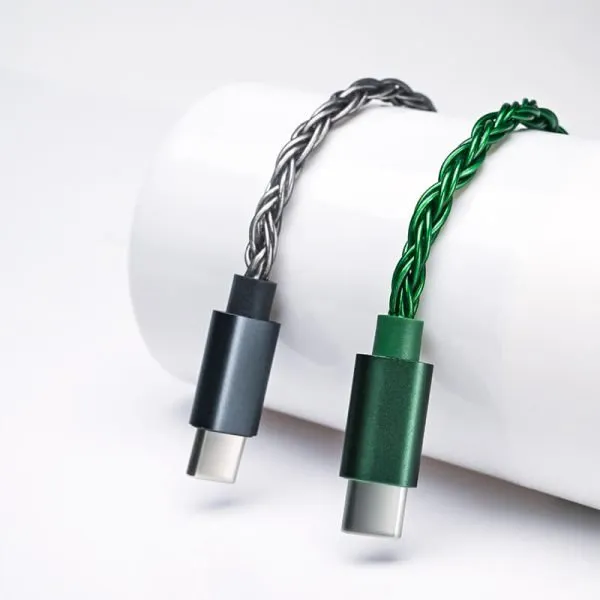

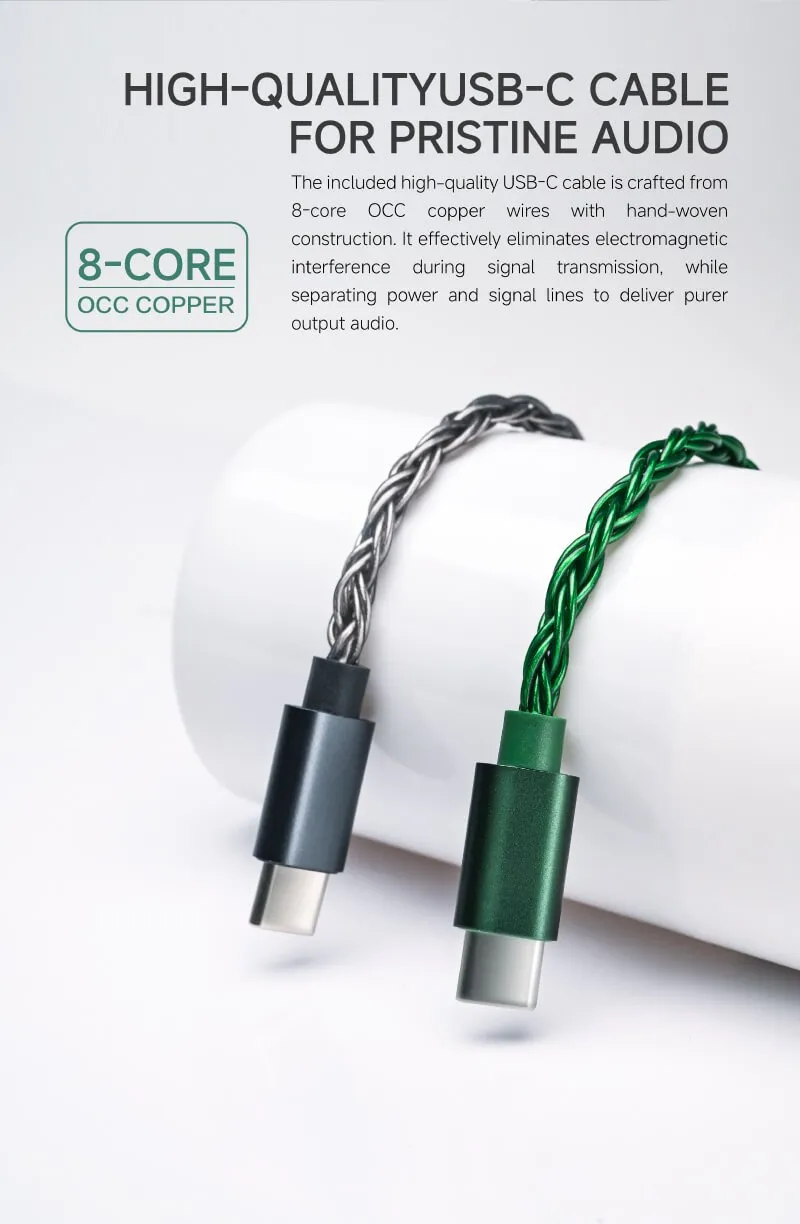

| USB-C to USB-C cable * 1 |
| USB-A Adapter * 1 |
| User Manual * 1 |
