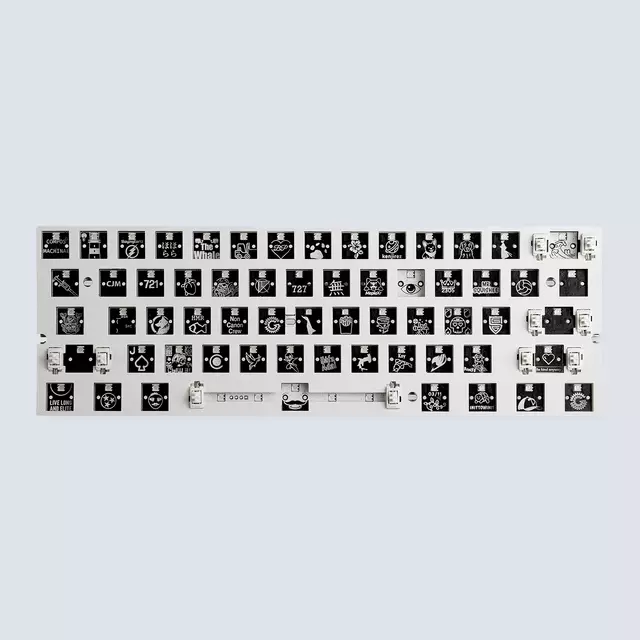

Wooting 60HE+ Keyboard Module

About the item

• Full Analog Input: Each key responds to pressure with 0.1 mm precision using magnetic Hall Effect sensors for analog movement detection.
• Adjustable Actuation Point: Customize the actuation point per key from 0.1 mm to 4.0 mm in 0.1 mm steps to match your preference.
• Rapid Trigger: Instantly reactivates or deactivates keys based on press depth changes, not fixed actuation points—ideal for competitive gaming.
• Rappy Snappy Tech: Experimental feature that chooses which key (e.g., A or D) is further pressed when both are partially down, ensuring accurate input timing in fast-paced games.
• Ultra-Low Latency: Sub-1 ms response time with parallel key scanning and optimized firmware for the lowest input delay possible.

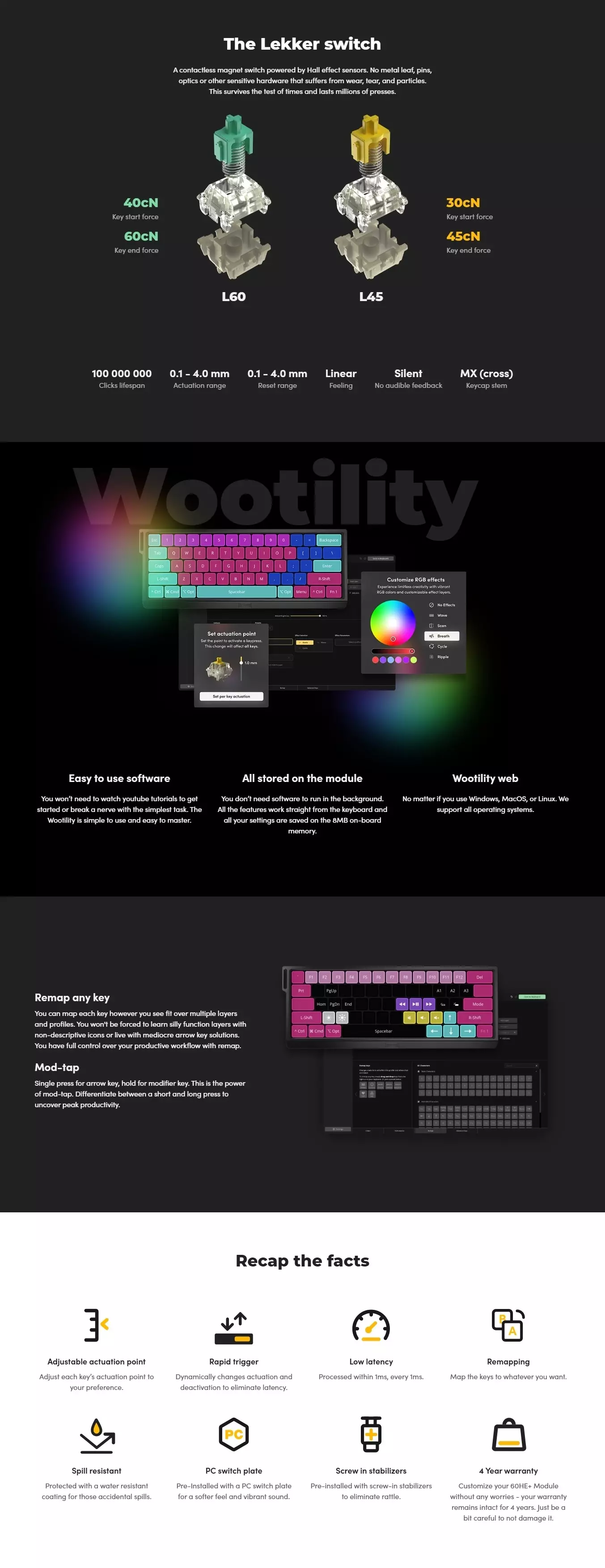

• Hot-Swappable: Supports Gateron KS-20 or Wooting Lekker (Hall Effect) switches—no soldering needed.

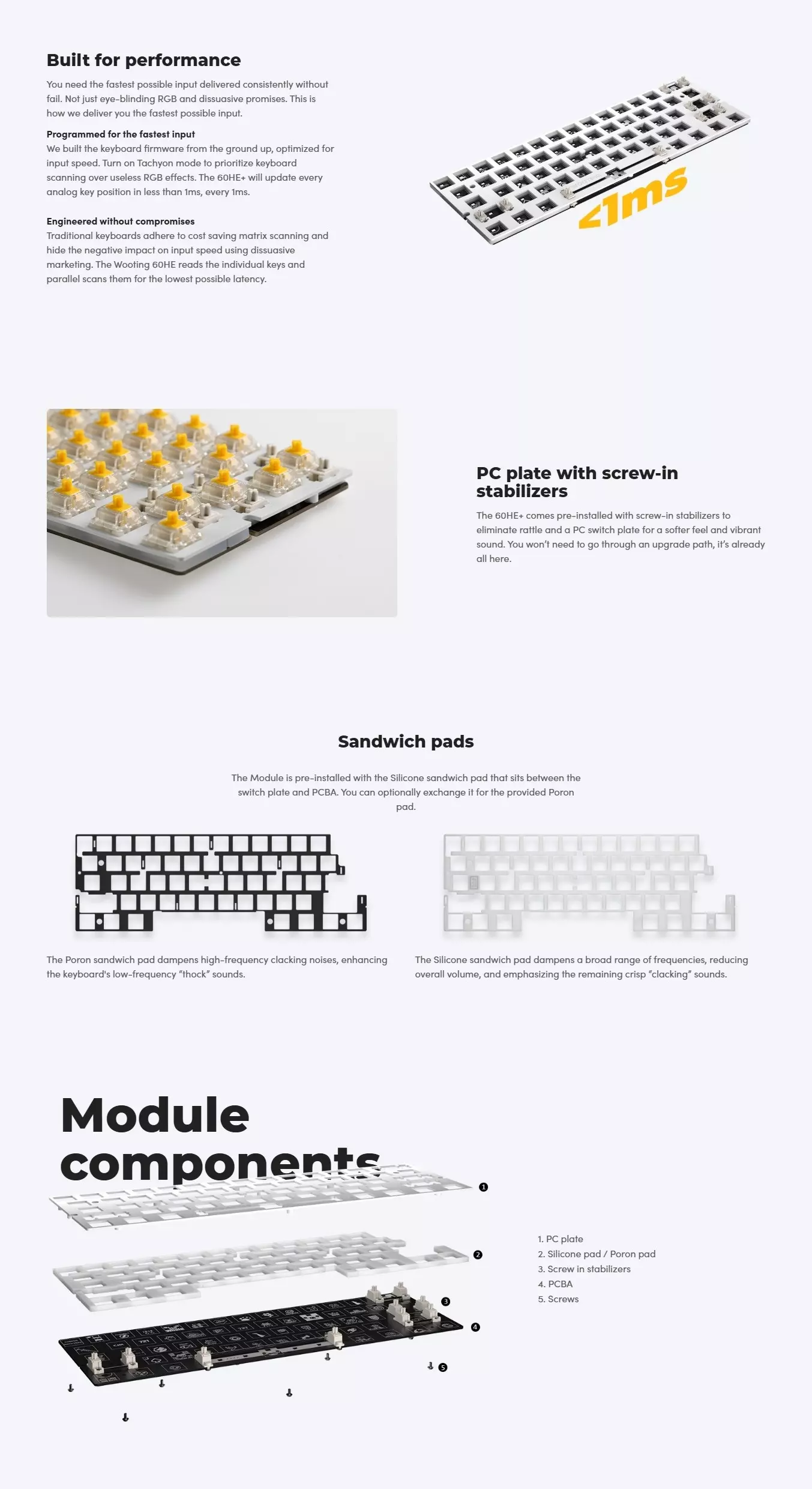

• Sound & Feel Customization: Includes both silicone (crisp) and Poron (thocky) dampening pads, plus EPDM foam for sound tuning.
• Screw-in Stabilizers: For spacebar, shift, enter, and backspace; installed on a polycarbonate plate.

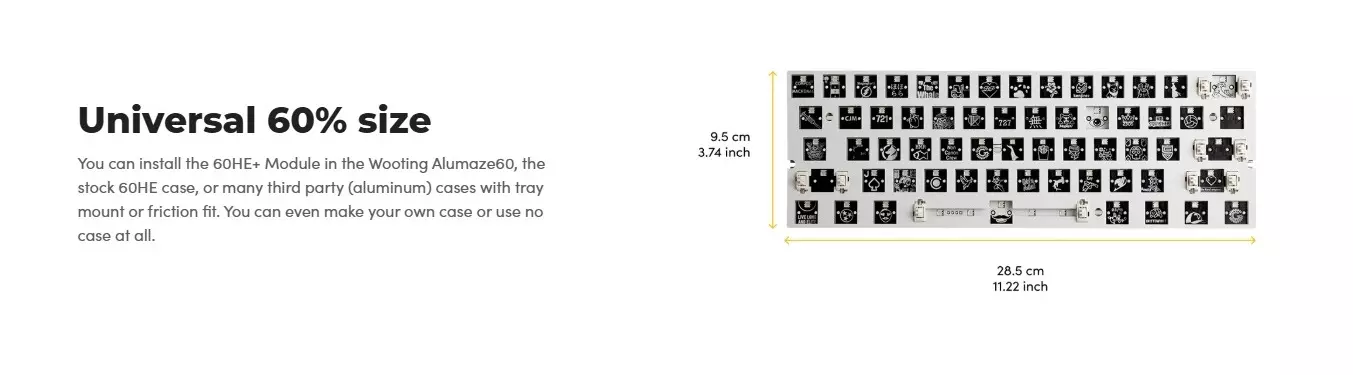

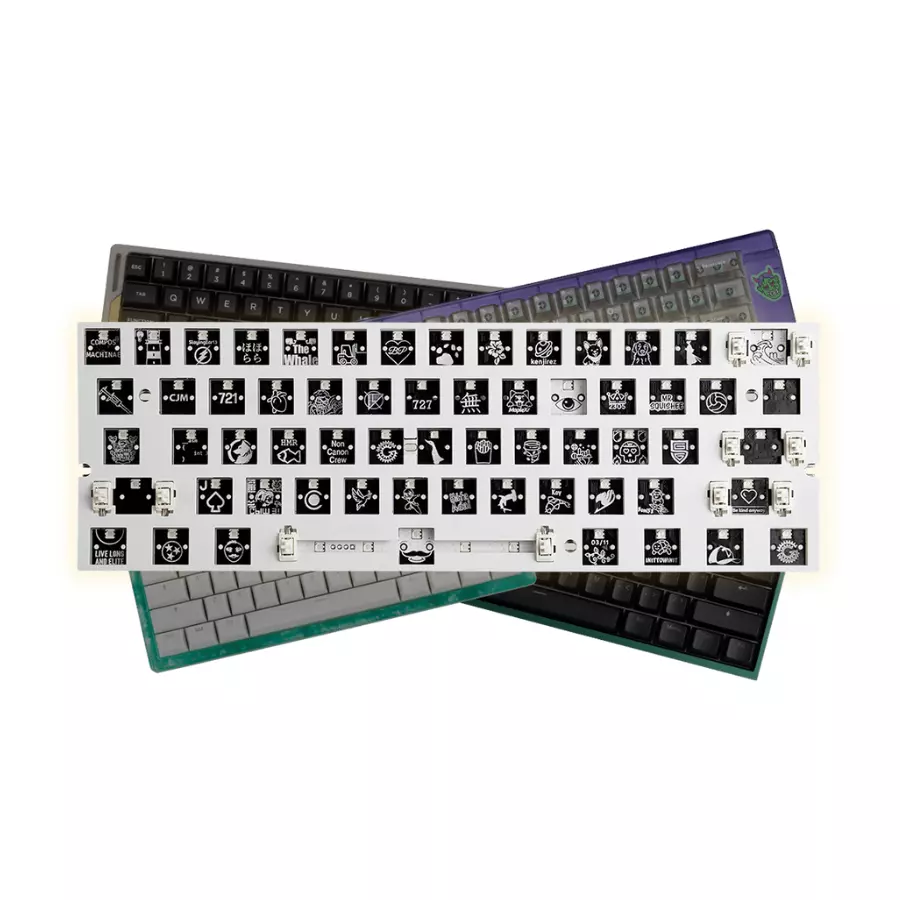

• Universal 60% Tray-Mount Compatible: Works with most third-party 60% aluminum or plastic cases.
• Wootility Software Support: Browser and desktop configuration tool to manage actuation settings, RGB lighting, macros, profiles, and more.
• Onboard Memory (8MB): Store up to 4 profiles, each with 3 customizable layers, saved directly on the module.
• Build Kit Includes: PCB, polycarbonate plate, silicone & Poron pads, EPDM foam, USB-C cable, stabilizers, screws—case, keycaps, and switches not included.

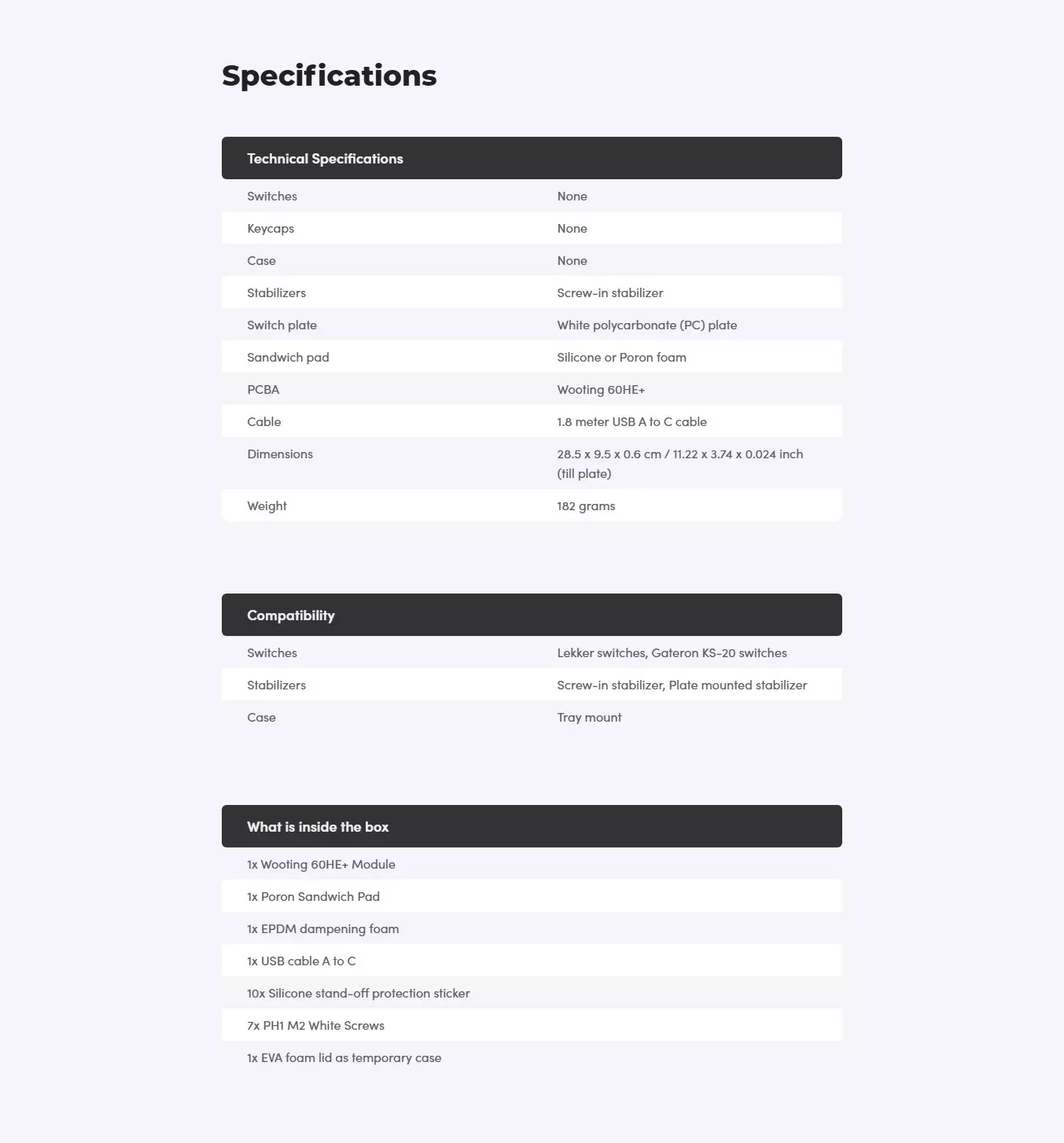

Specification
