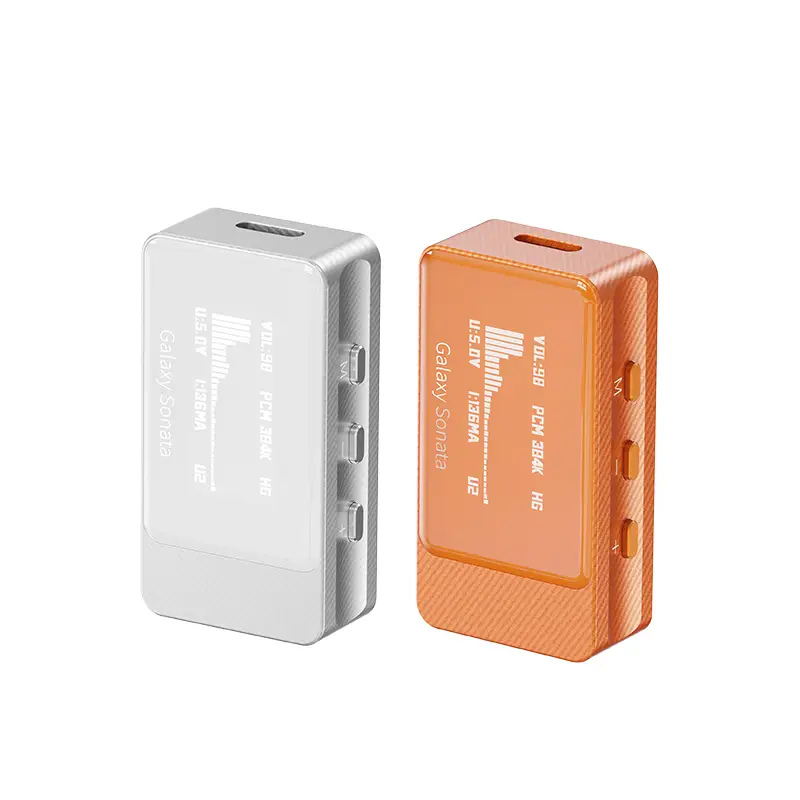

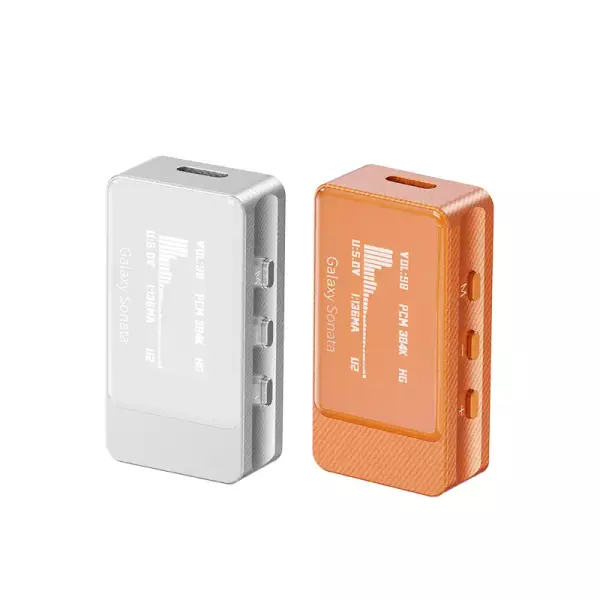

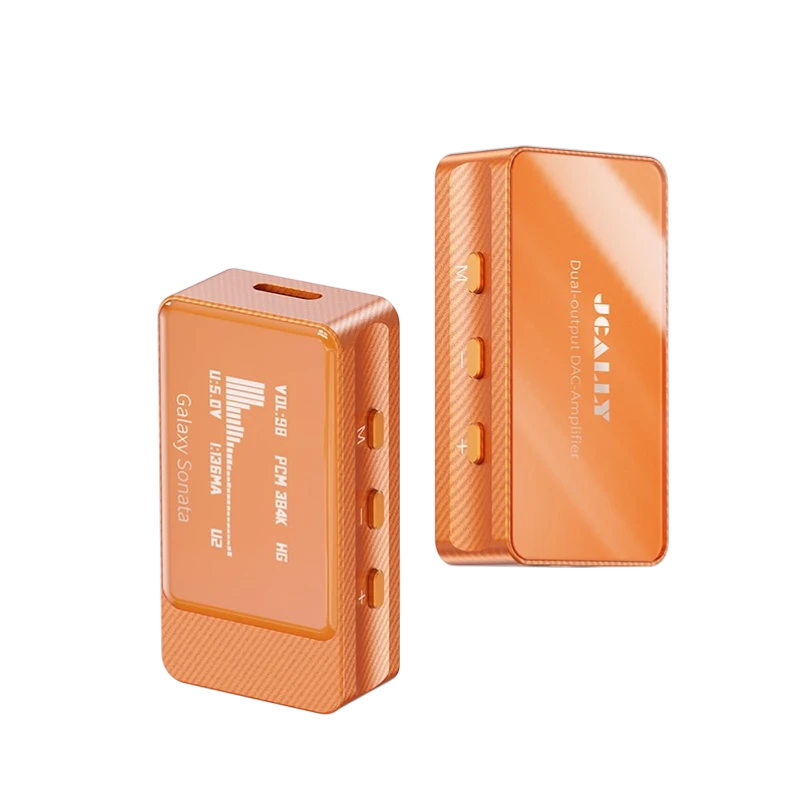

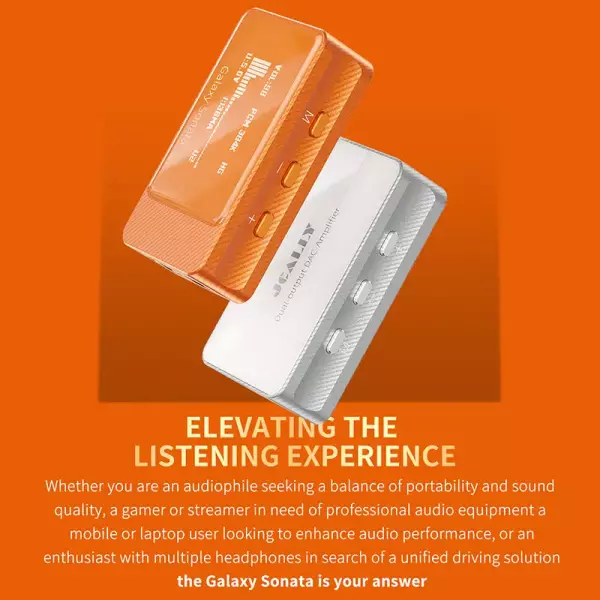

Jcally Galaxy Sonata Portable DAC-Amplifier
Luxury-grade listening experience, Galaxy Sonata
$74.99$79.99
SKU:ZS-EIB-41933-ORG
- Available for In-store Pickup at checkout
- In-stock order before 5:00pm for same day delivery
- Delivery in the Phnom Penh Capital with Grab Express
- Domestic shipping to the Provinces with VET Express and J&T Express
- International shipping from Cambodia with Cambodia Post and DHL Express
Safe and secure checkout by ABA PayWay

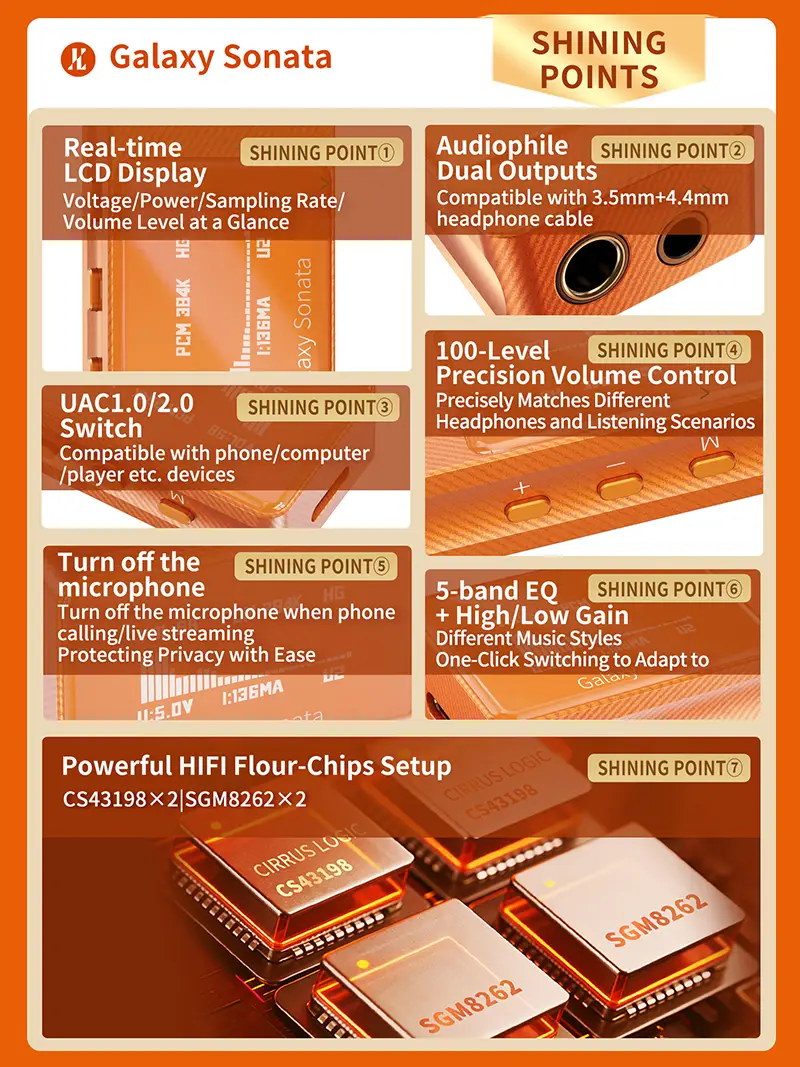

About the item

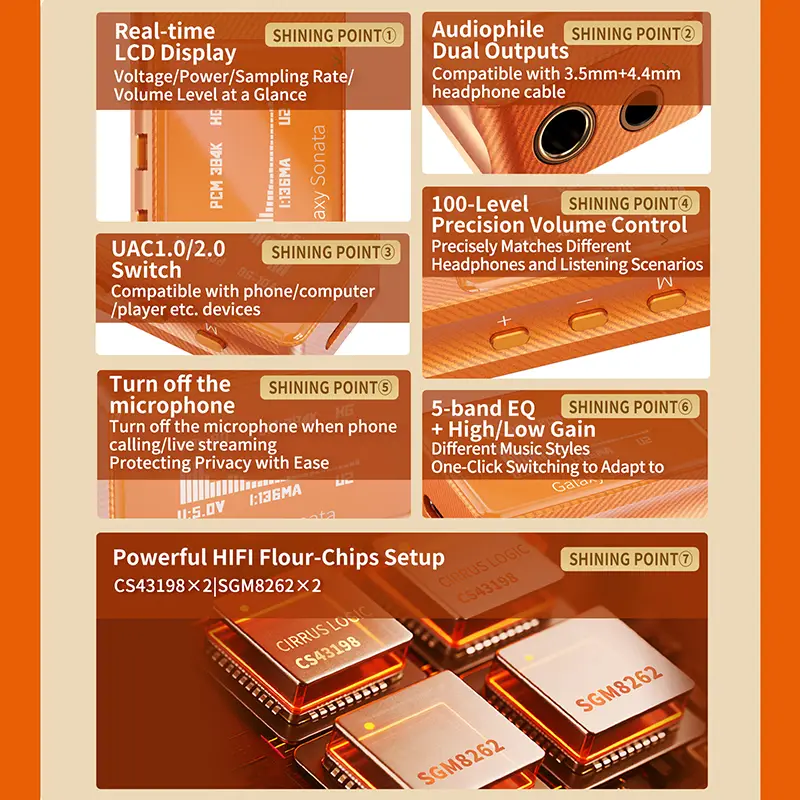

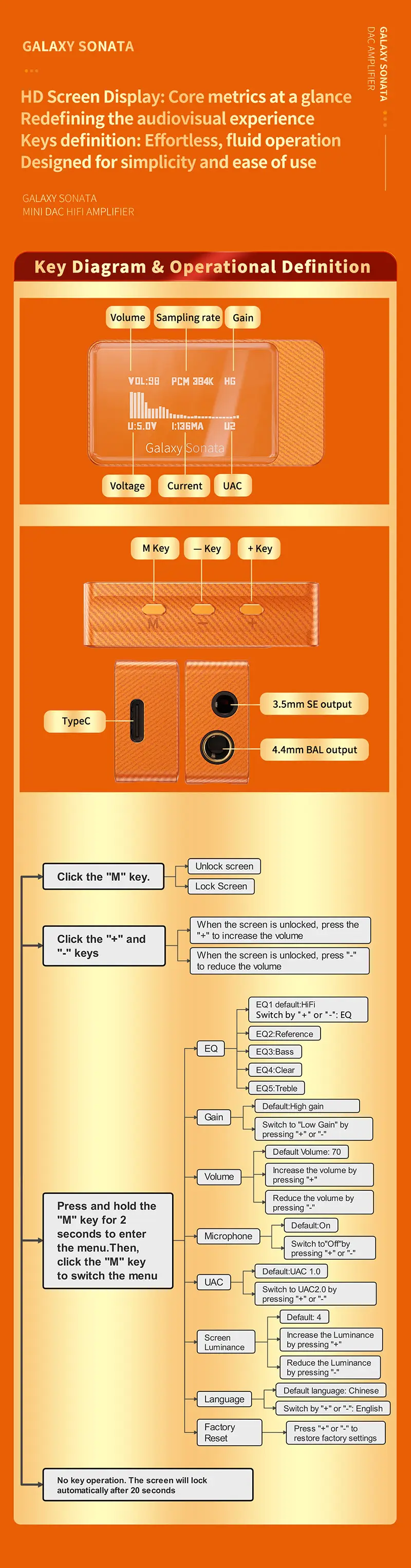

- Real-time LCD Display: Showing Voltage / Power / Sampling Rate / Volume Level at a Glance

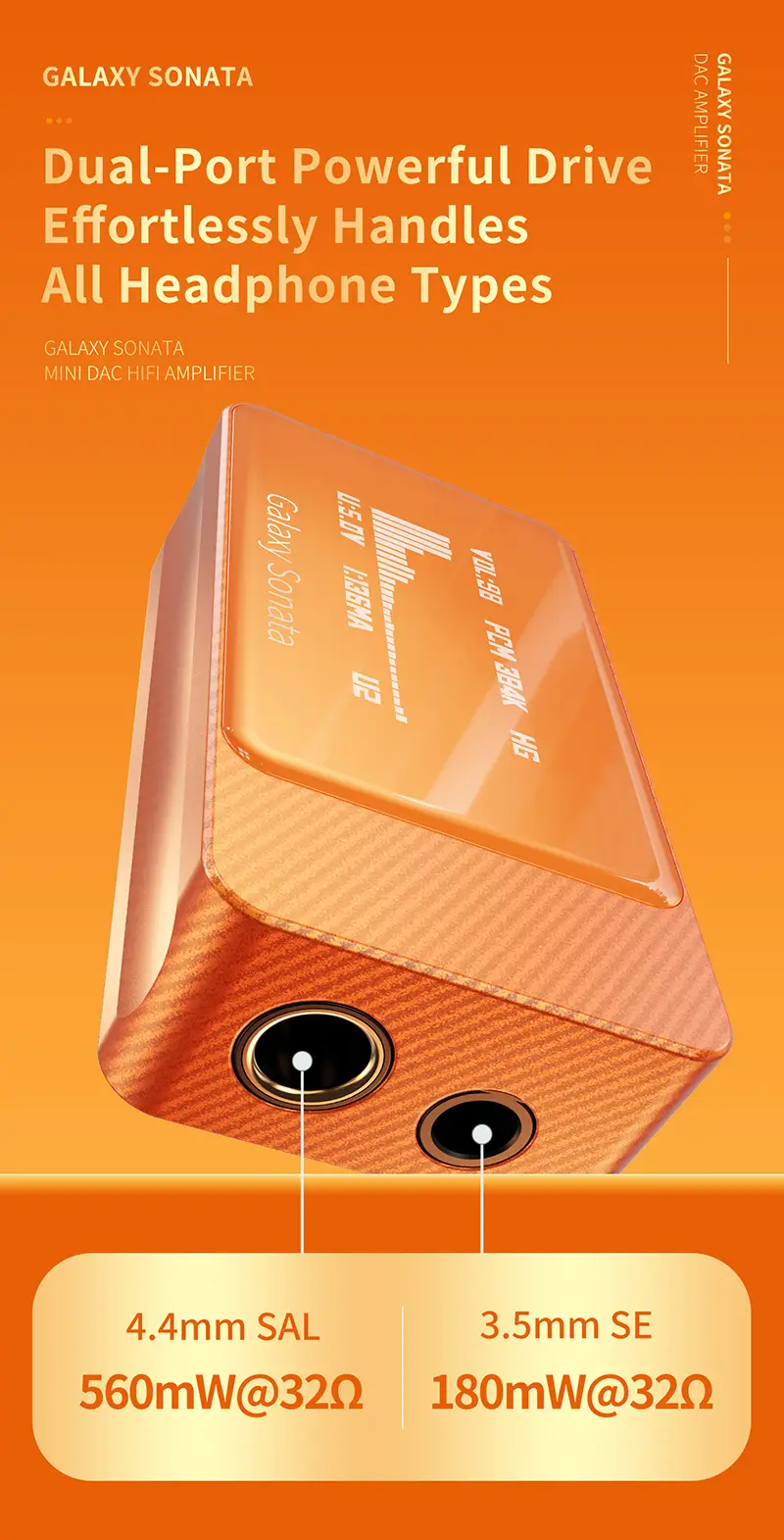

- Audiophile Dual Outputs: Compatible with 3.5mm Single Ended + 4.4mm Balance
- UAC1.0 / 2.0 Switch: Compatible with phone / computer / player and other devices
- 100-Level Precision Volume Control: Precisely matches different headphones and listening scenarios
- Turn Off the Microphone: Turn off the microphone when phone calling or live streaming to protect privacy

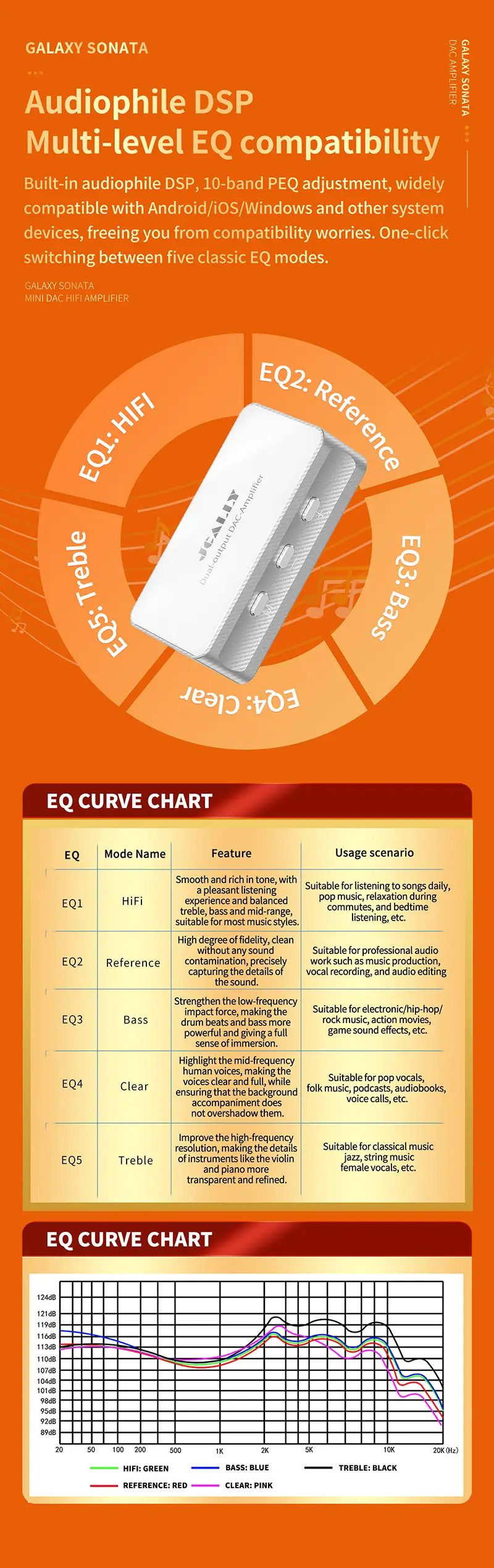

- 5-band EQ + High / Low Gain: One-click switching for different music styles

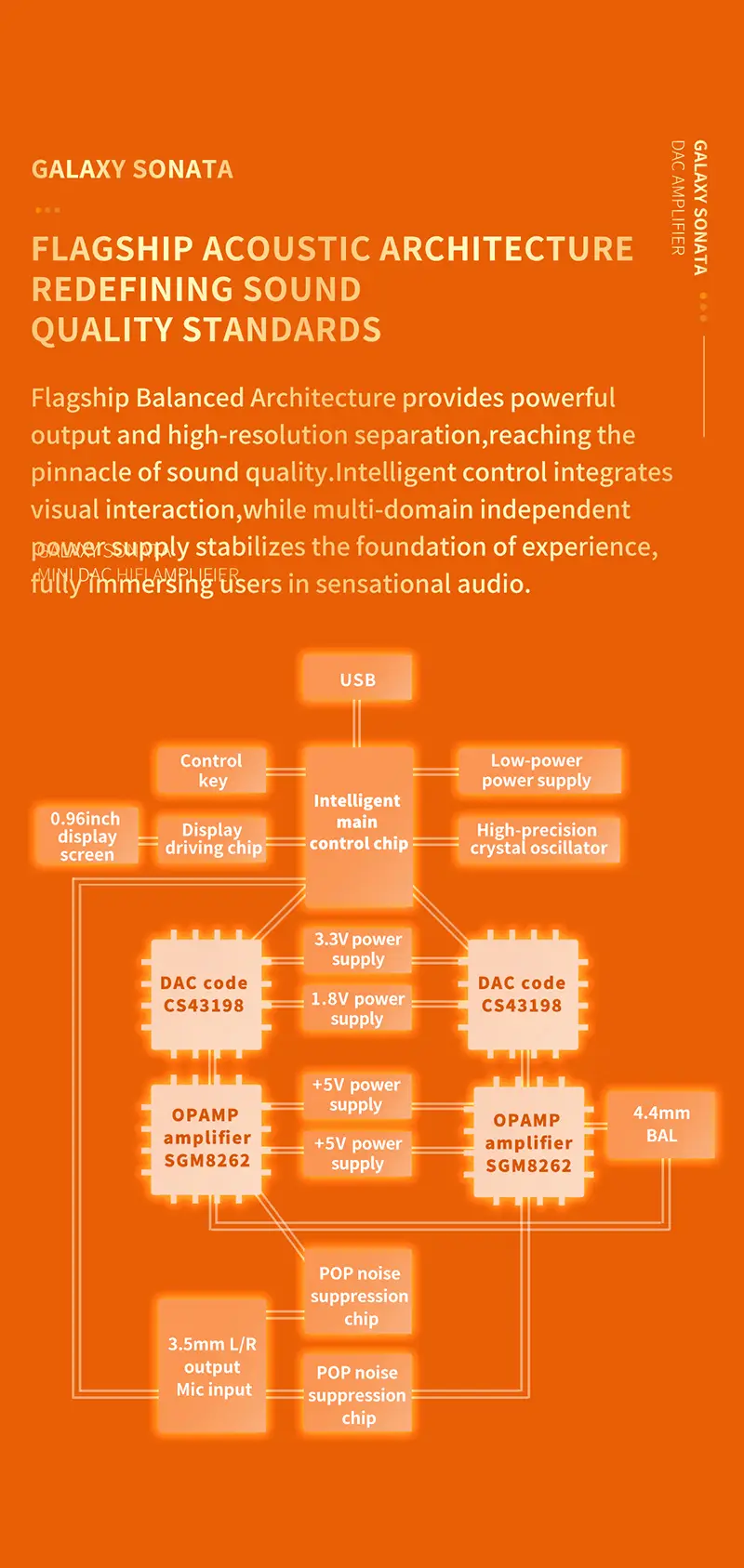

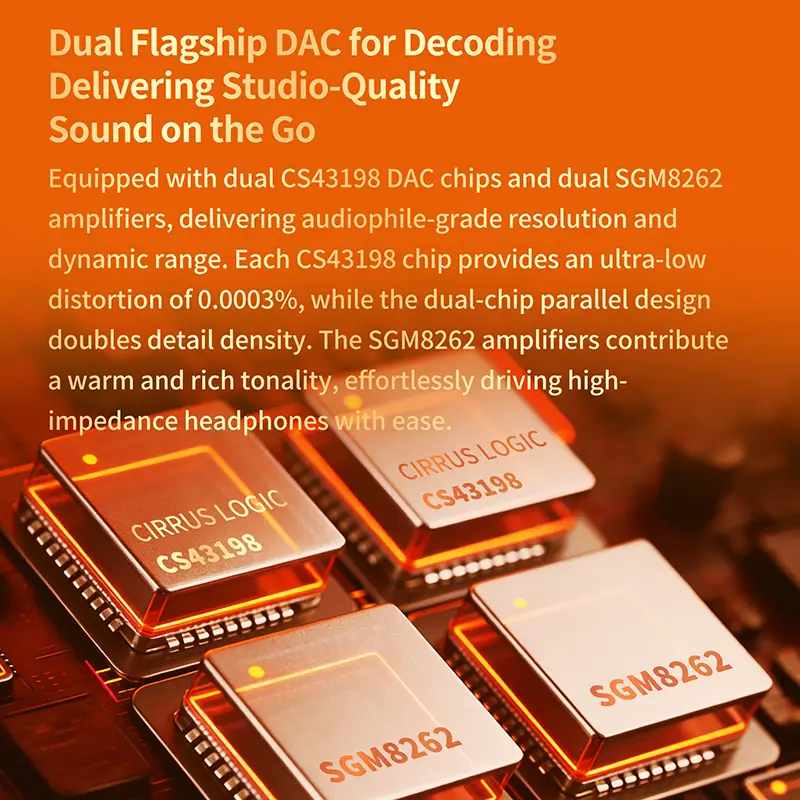

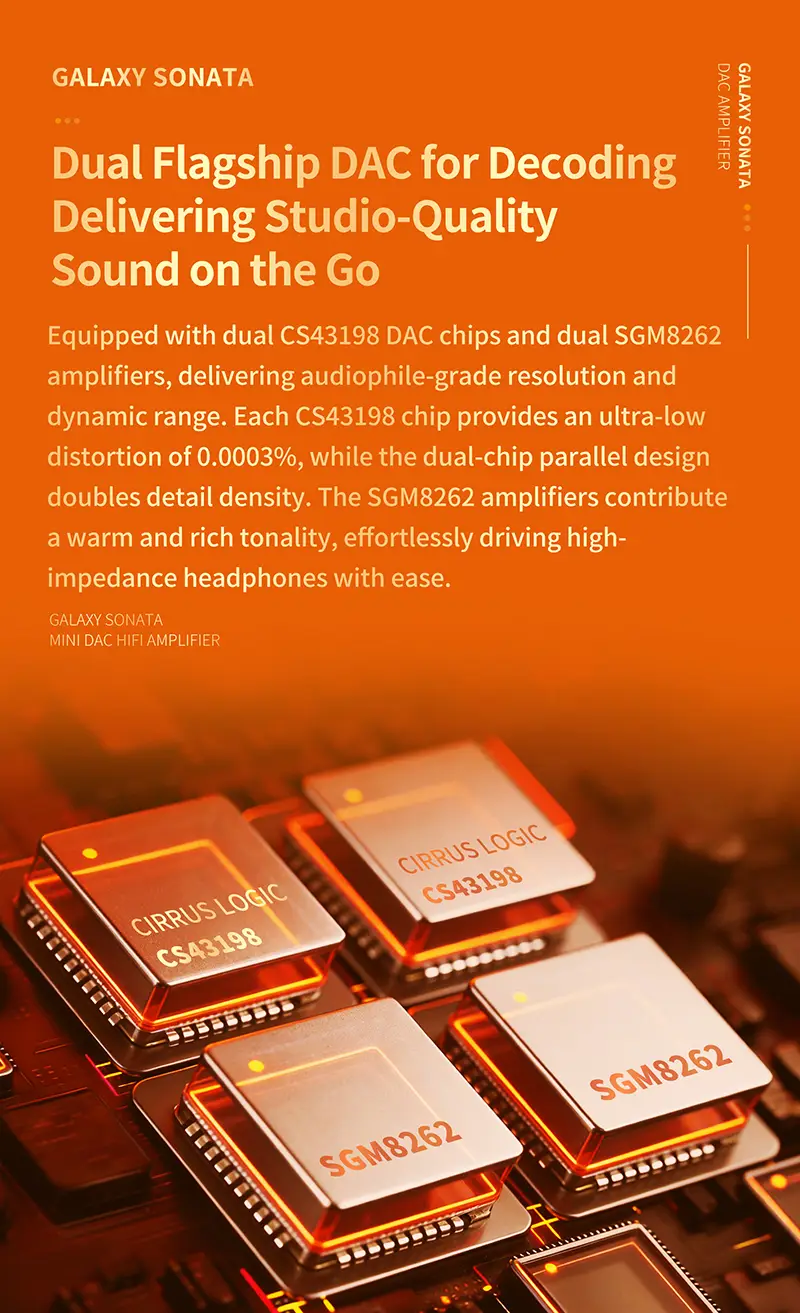

- Powerful HiFi Four-Chip Setup: CS43198 ×2 + SGM8262 ×2
Specification
| Model | Galaxy Sonata |
| DAC Chip | Cirrus Logic CS43198 ×2 |
| Opamp Chip | SGM8262 ×2 |
| Codec Support | PCM 32bit / 384kHz and DSD256 (Native) |

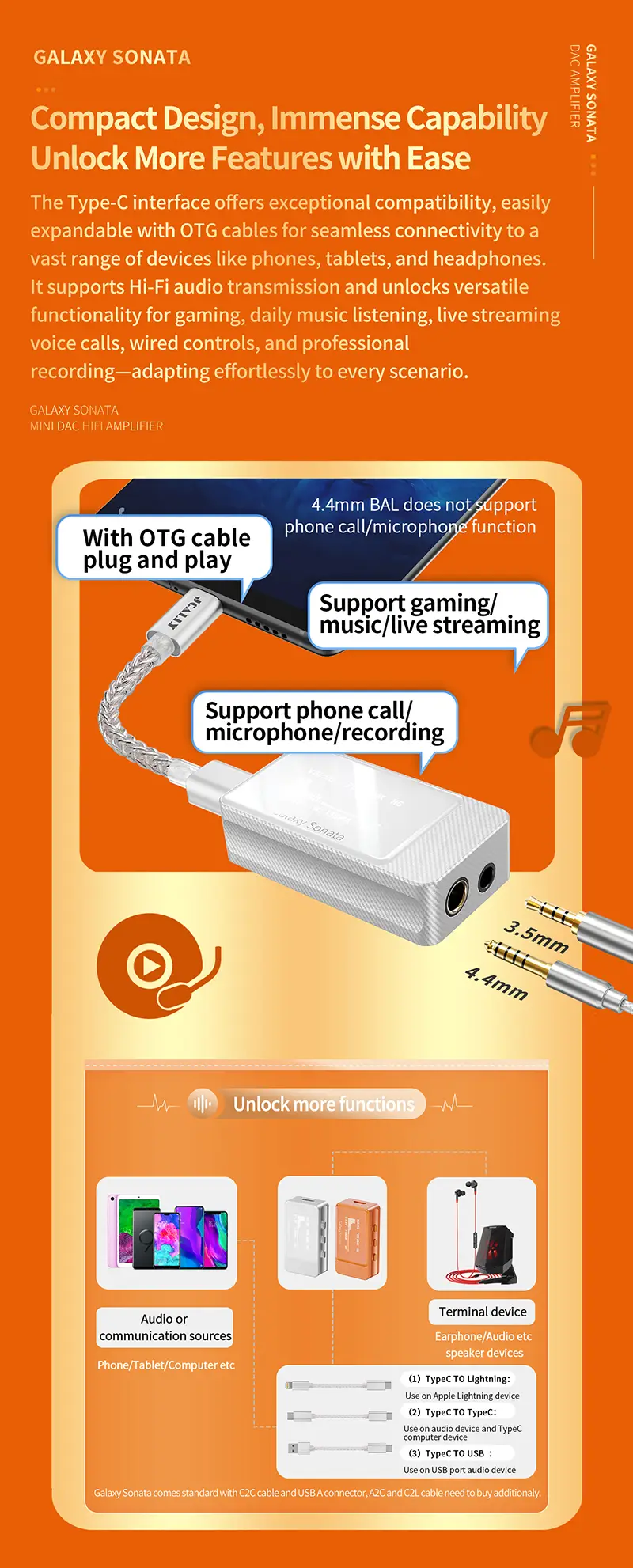

| Input | USB Type-C → Type-C, Lightning and USB-A |
| Output | SE 3.5mm / BAL 4.4mm dual ports output |

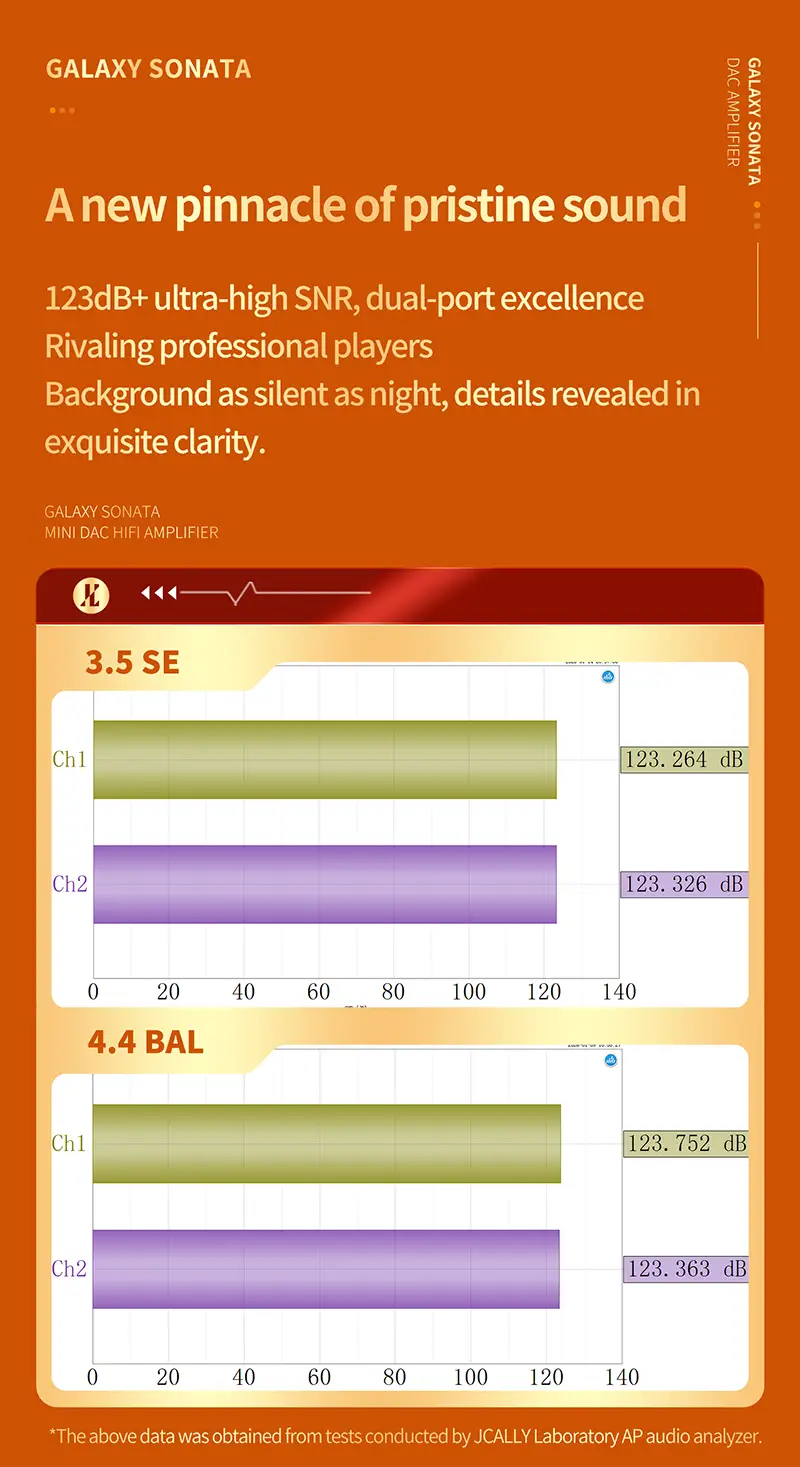

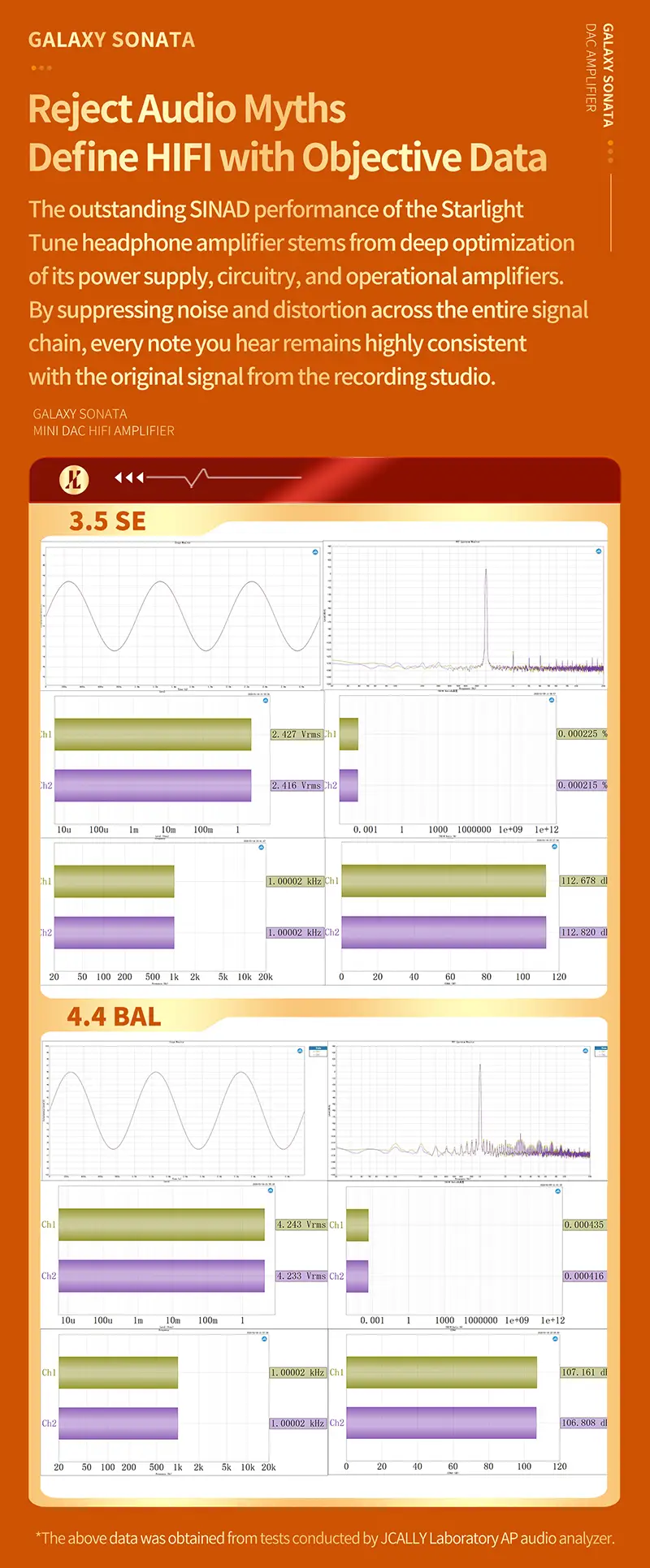

| Signal-to-noise Ratio | SE 3.5mm: ≈123dB @ 32Ω BAL 4.4mm: ≈123dB @ 32Ω |

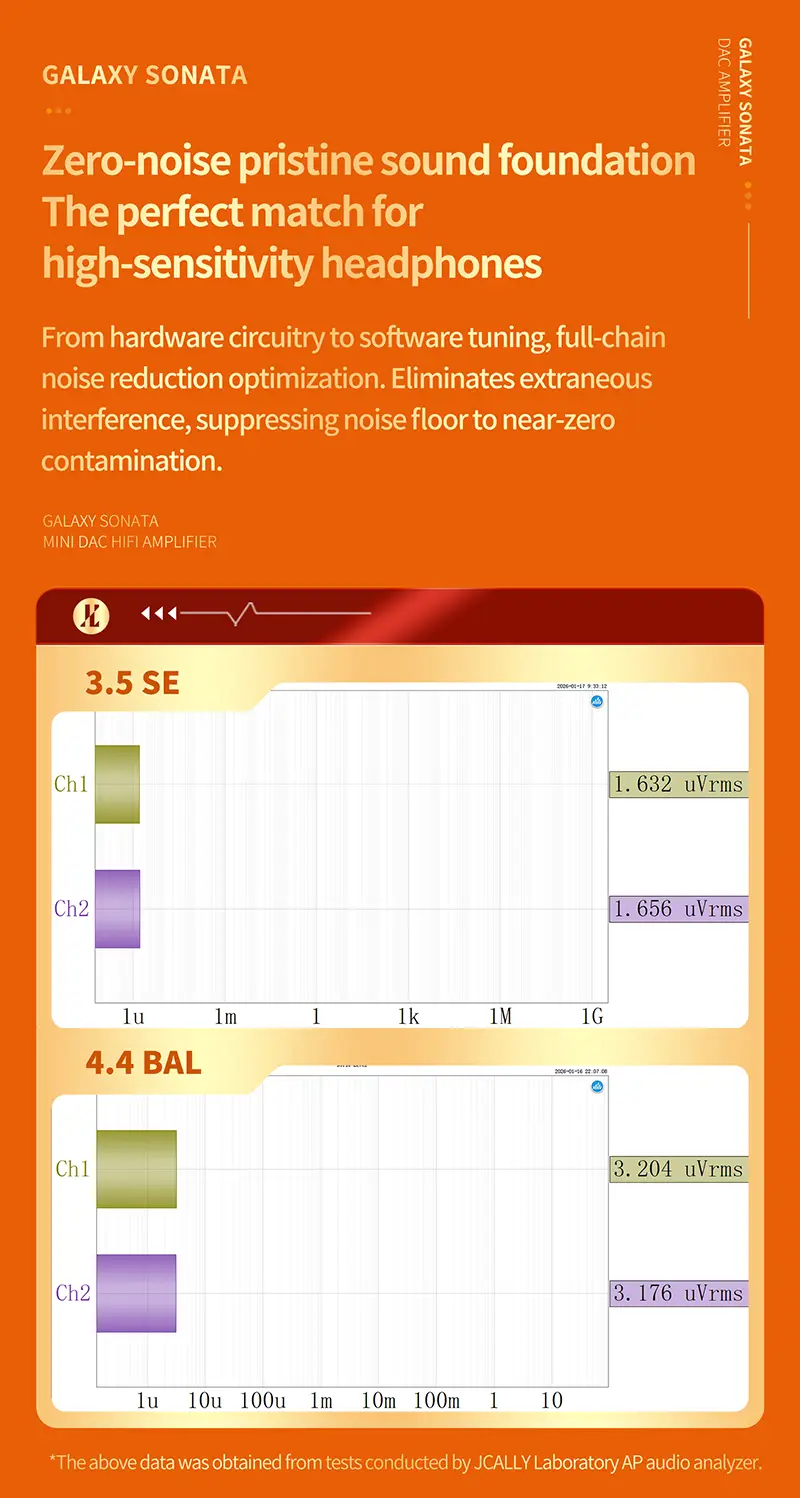

| Noise Level | SE 3.5mm: ≈1.7µV @ 32Ω BAL 4.4mm: ≈3.2µV @ 32Ω |

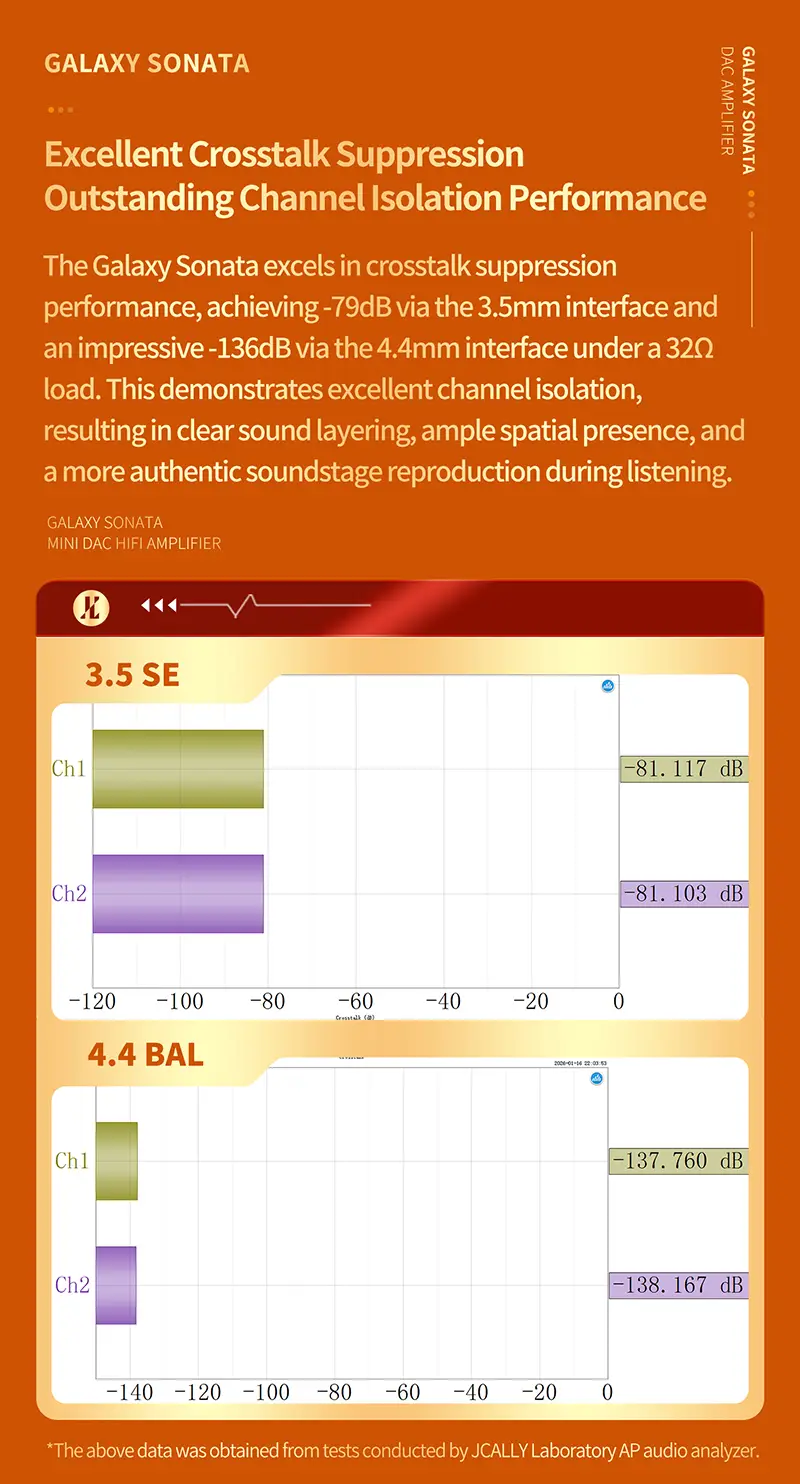

| Crosstalk | SE 3.5mm: ≈ -79dB @ 32Ω BAL 4.4mm: ≈ -136dB @ 32Ω |

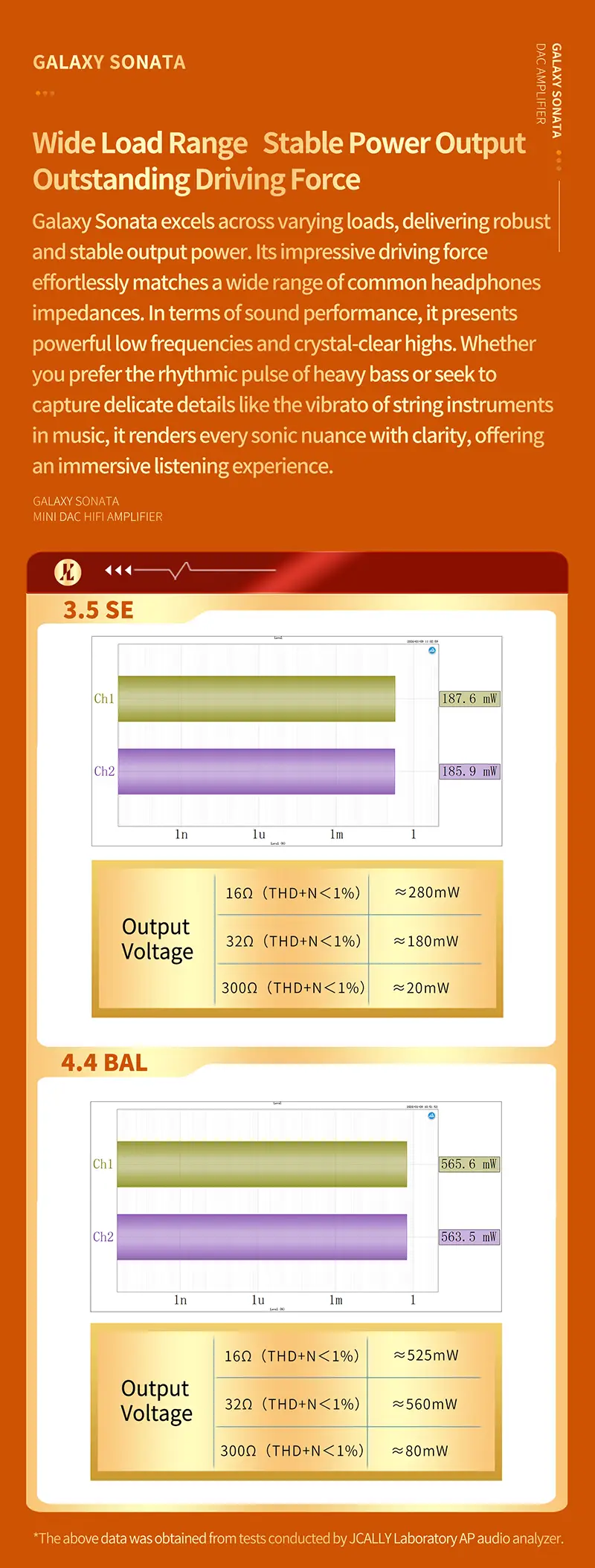

| Output Power | SE 3.5mm: ≈180mW (32Ω, THD+N<1%) BAL 4.4mm: ≈560mW (32Ω, THD+N<1%) |

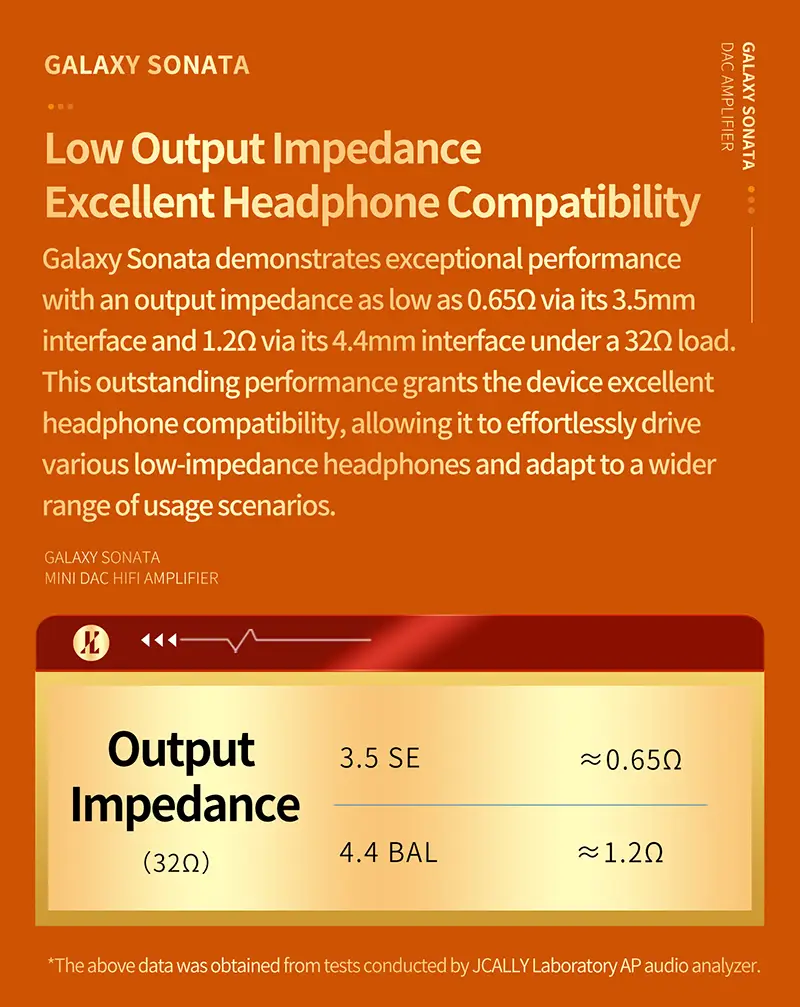

| Output Impedance | SE 3.5mm: ≈0.65Ω @ 32Ω BAL 4.4mm: ≈1.2Ω @ 32Ω |

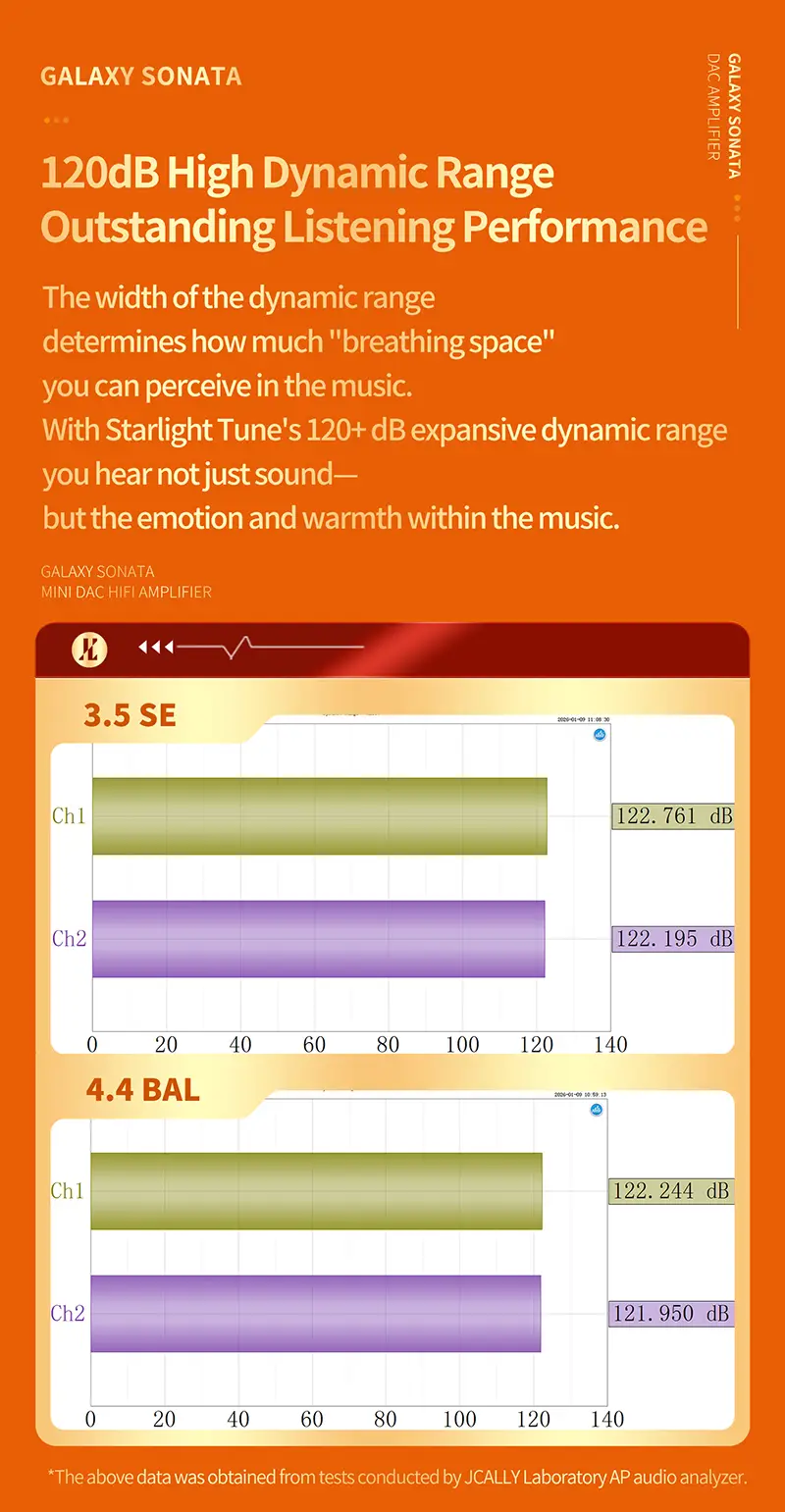

| DNR | SE 3.5mm: ≈120dB (32Ω) 4.4 BAL: ≈120dB (32Ω) |

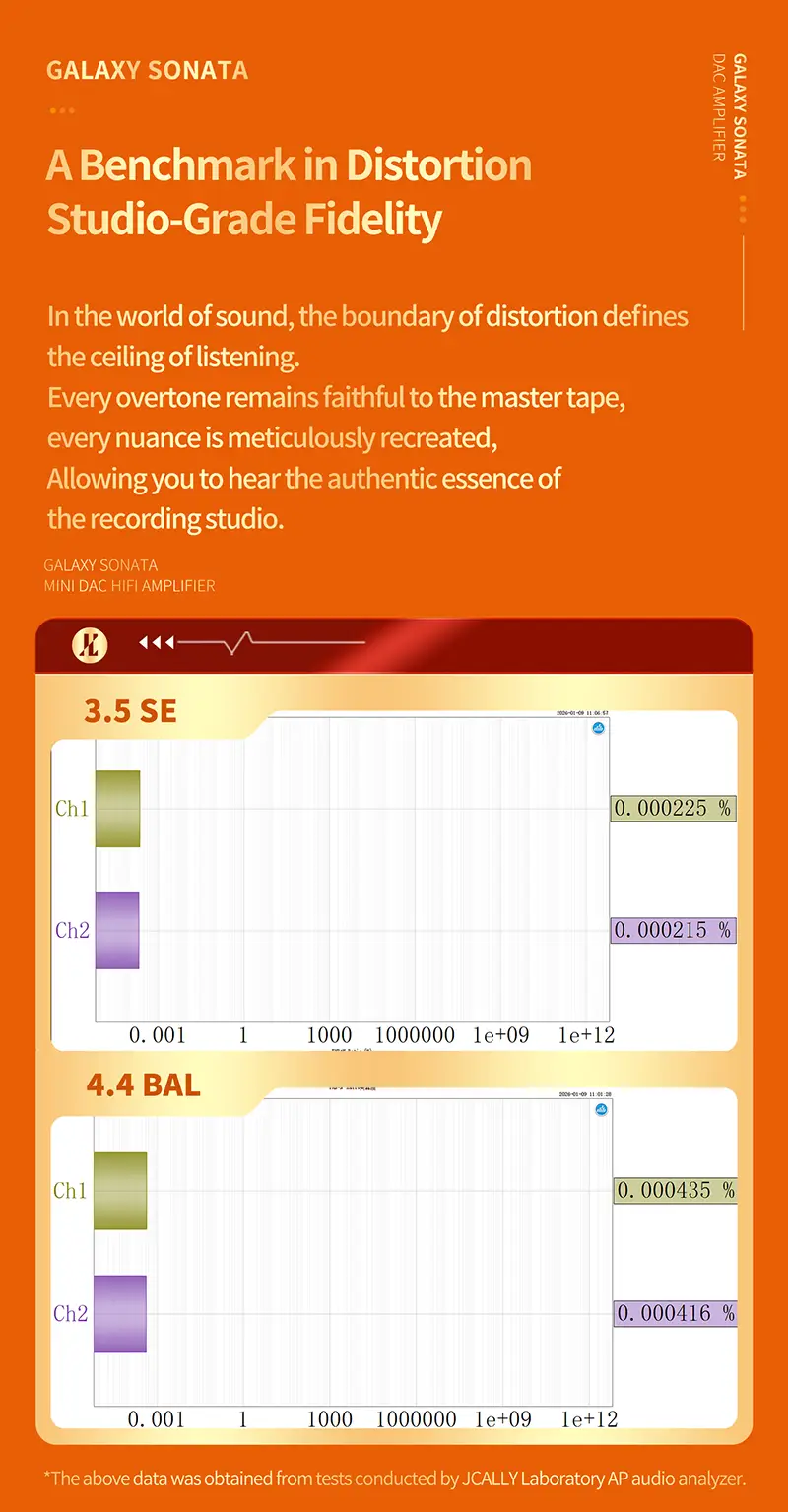

| THD+N | SE 3.5mm: ≈0.0003% @ 32Ω BAL 4.4mm: ≈0.00045% @ 32Ω |

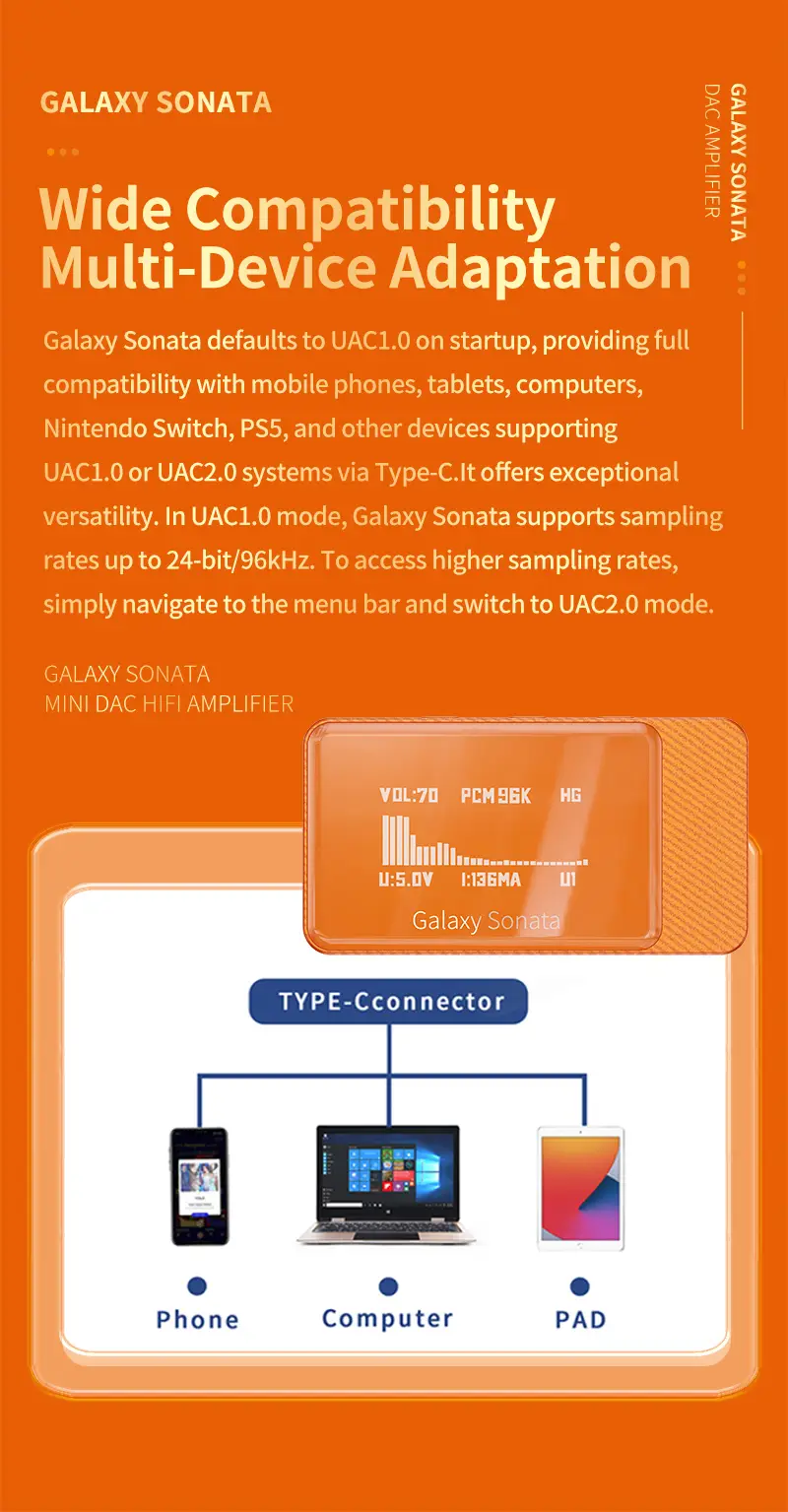

| Application | Default UAC1.0 mode for compatibility (phones, tablets, computers, Nintendo Switch, PS5). Supports UAC2.0 mode for higher sampling rates up to 24-bit / 96kHz. |
| Shell Material | 5-axis CNC precision-machined aluminum alloy 2.5D tempered glass + 0.96-inch colorful IPS display |
