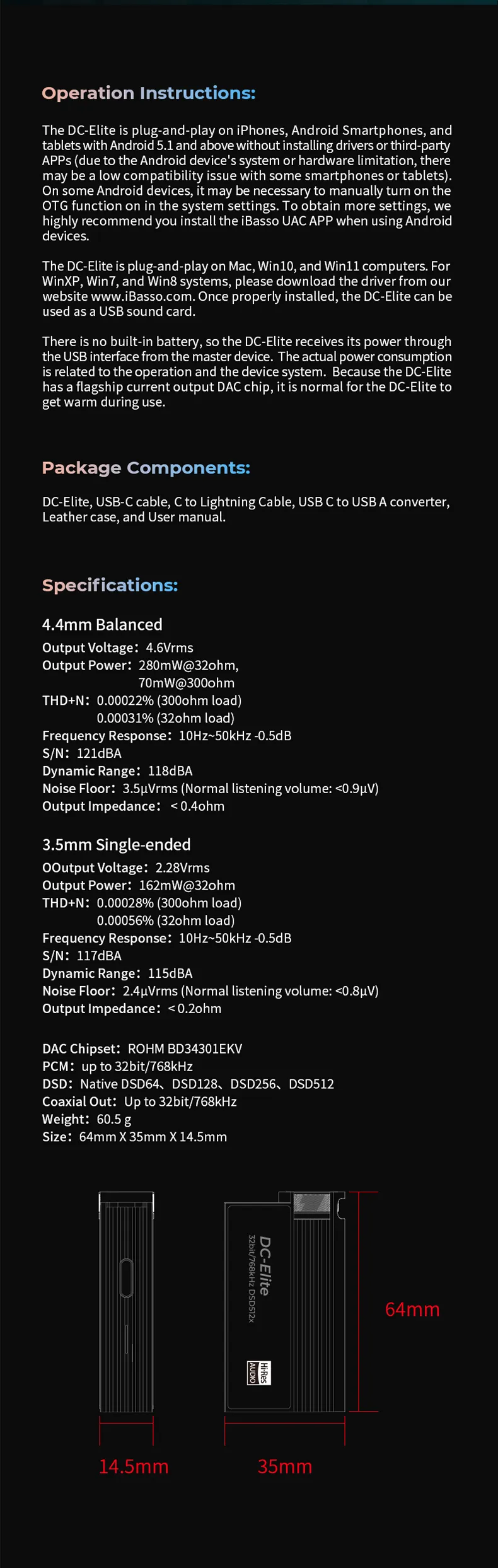

Specification

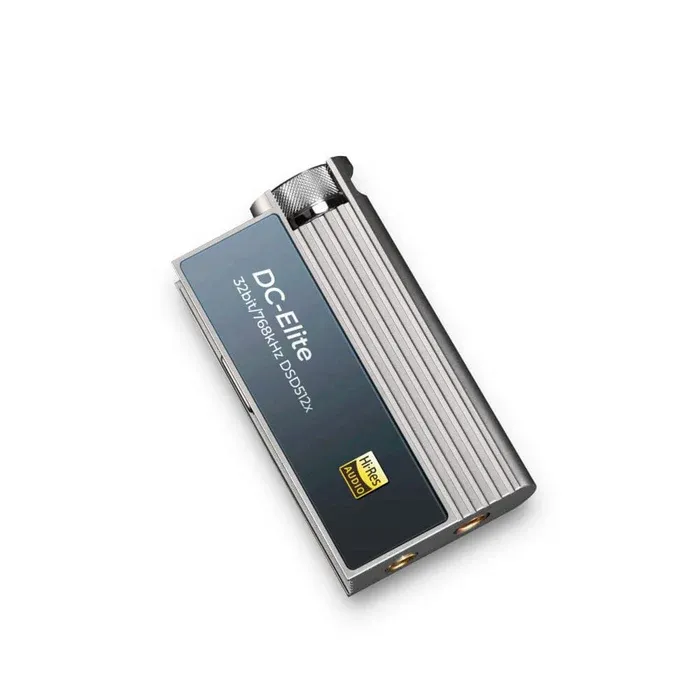

| Model | DC-Elite |
| DAC Chip | Flagship ROHM BD34301EKV DAC |
| Amplifier | Discrete |
| Input Interface | Type-C |
| Sampling Rate | PCM up to 32-Bit/768kHz, Native DSD512 |

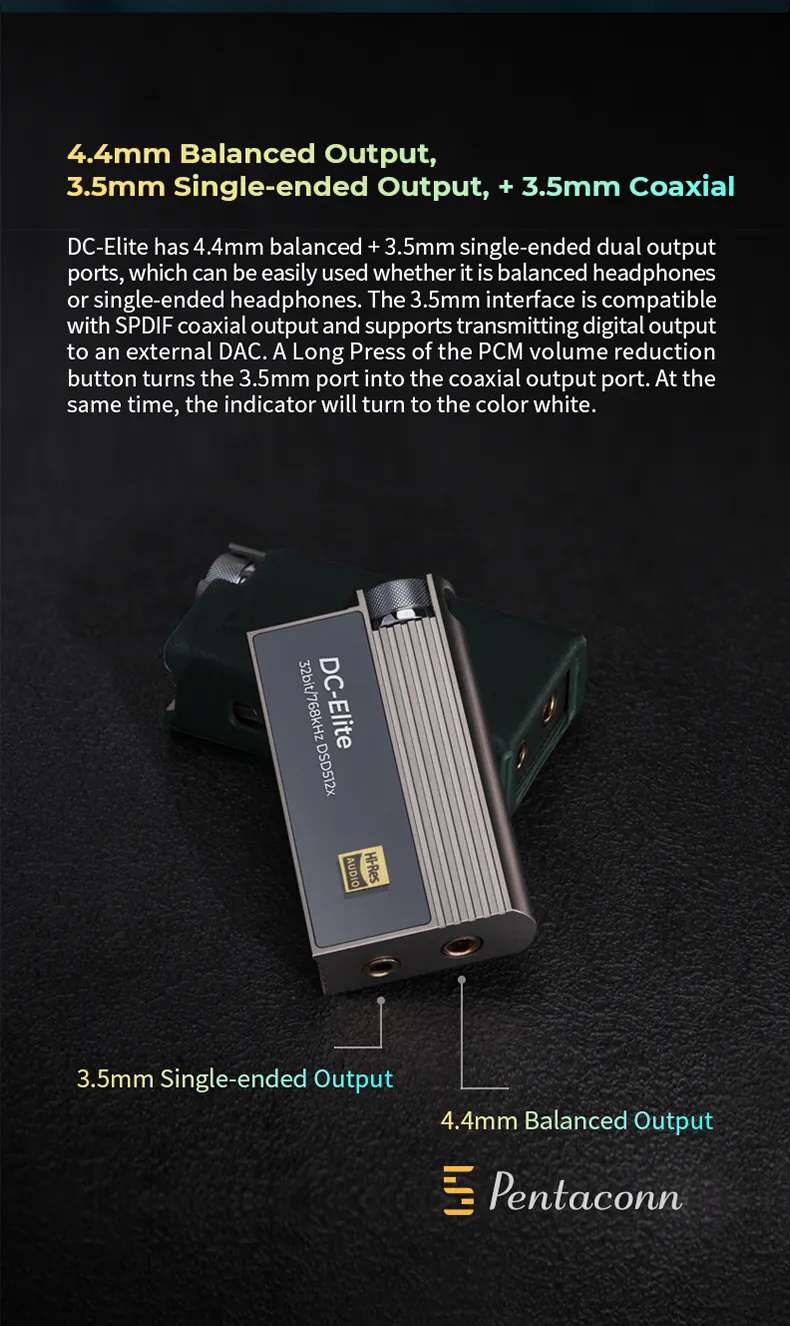

| Headphone Out | 3.5mm Single-ended/4.4mm Balanced |
| Output Power | Voltage 2.28Vrms (Single-ended)/4.6Vrms (Balanced) 162mW@32Ω (Single-ended)/280mW@32Ω, 70mW@300Ω (Balanced) |
| Frequency Response | 10Hz-50kHz +/- 0.5dB |
| SNR | 117dB (Single-ended)/121dB (Balanced) |
| THD+N Ratio | 0.00028% (300Ω load, Single-ended)/0.00022% (300Ω load, Balanced) |
| Output Impedance | <0.2Ω (Single-ended)/<0.4Ω (Balanced) |
| Dimensions/Weight | 64x35x14.5mm/60.5g |
| Warranty | 1 year on manufacturing defects |

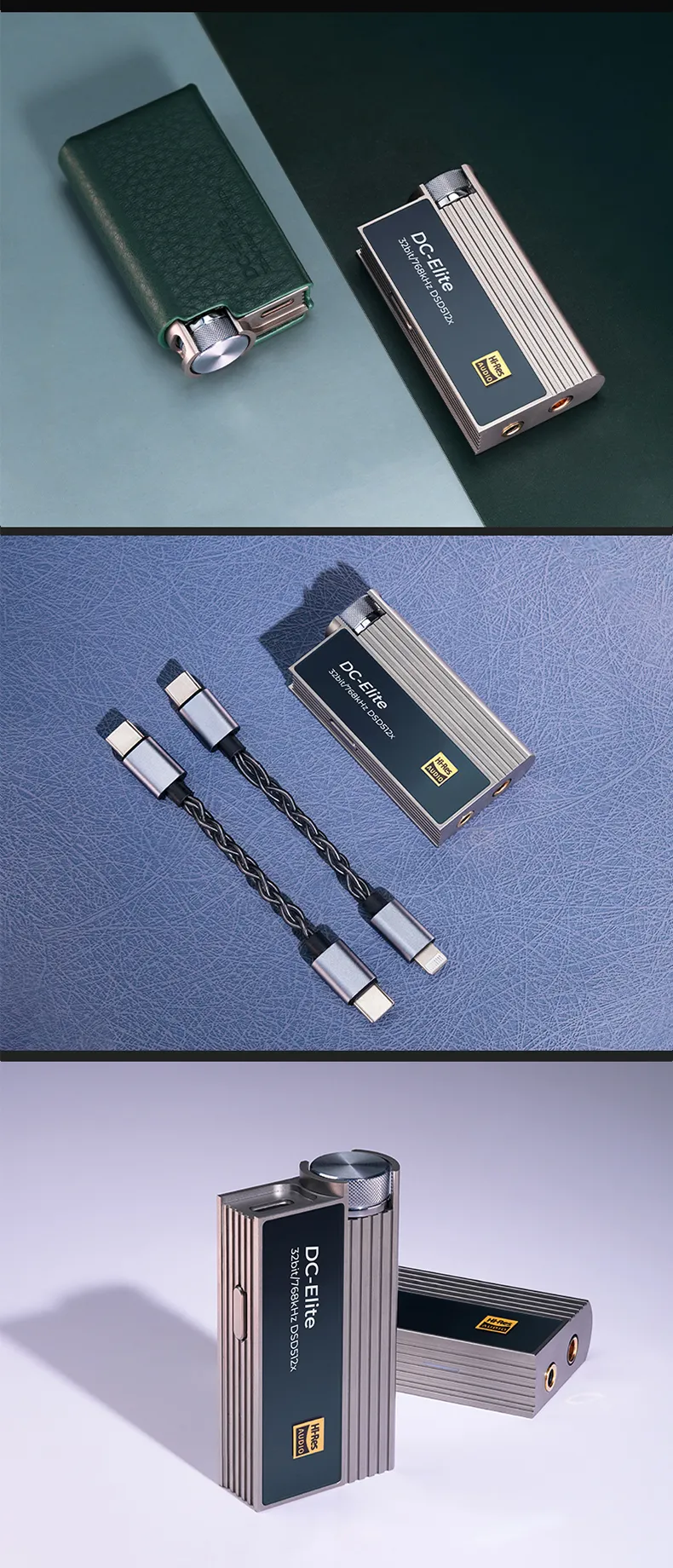

Package list
| DC-Elite * 1 |
| USB-C to USB-C cable * 1 |
| USB-C to USB-A adapter * 1 |
| USB-C to Lightning cable * 1 |
| User Manual * 1 |
