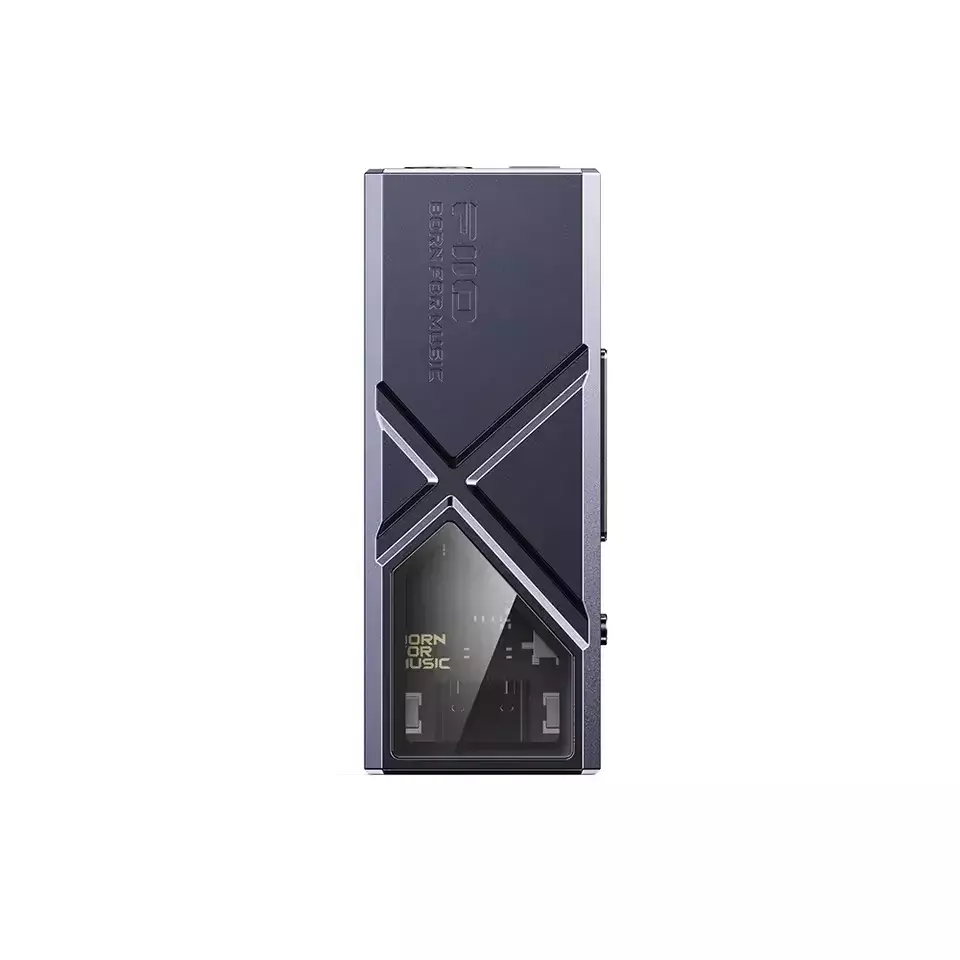

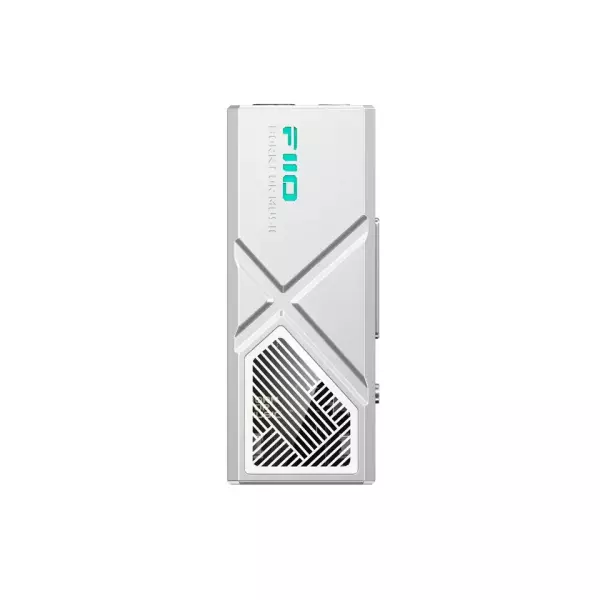

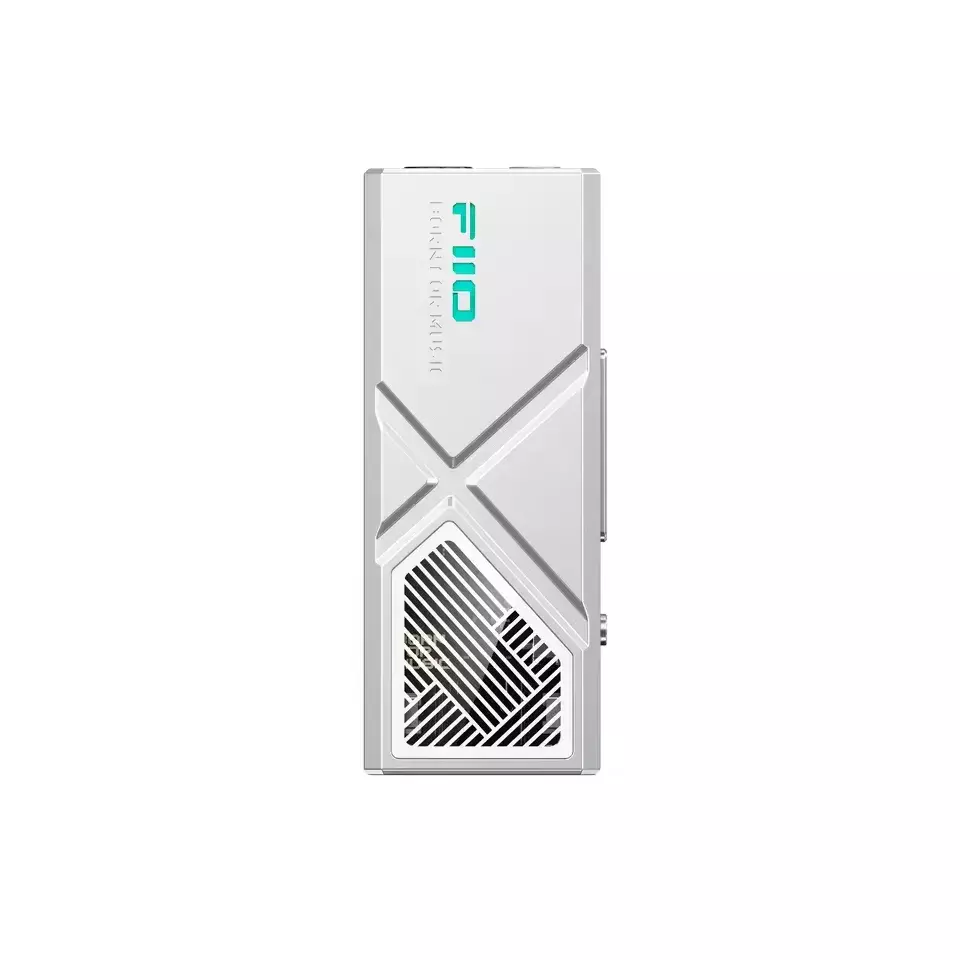

KA13 is a brand-new portable USB DAC/AMP with enhanced audio circuitry for unmatched performance. The portable DAC/AMP houses desktop-grade amplification providing a solid output thrust of up to 550mW easily driving IEMs and headphones without breaking a sweat. As for decoding, we have a high-performance Dual DAC chipset housing two CS43131 DAC chips that provide crystal clear decoding for high-resolution PCM and DSD audio signals. KA13 has an exquisite build structure with a solid metallic build and an exclusive ambient light display window. Upgrade the way you enjoy your music with the KA13.
Safe and secure checkout by ABA PayWay
About the item

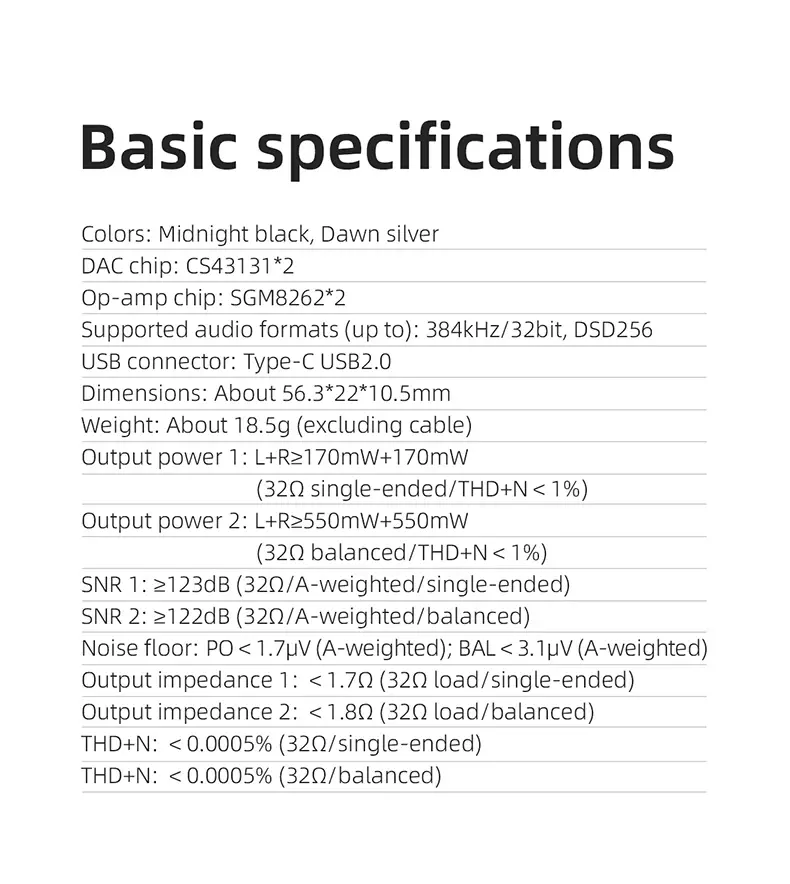

Specification
| Model | KA13 |
| DAC Chip | Cirrus Logic CS43131 x 2 |
| Op-Amp | SGMicro SGM8262 x 2 |

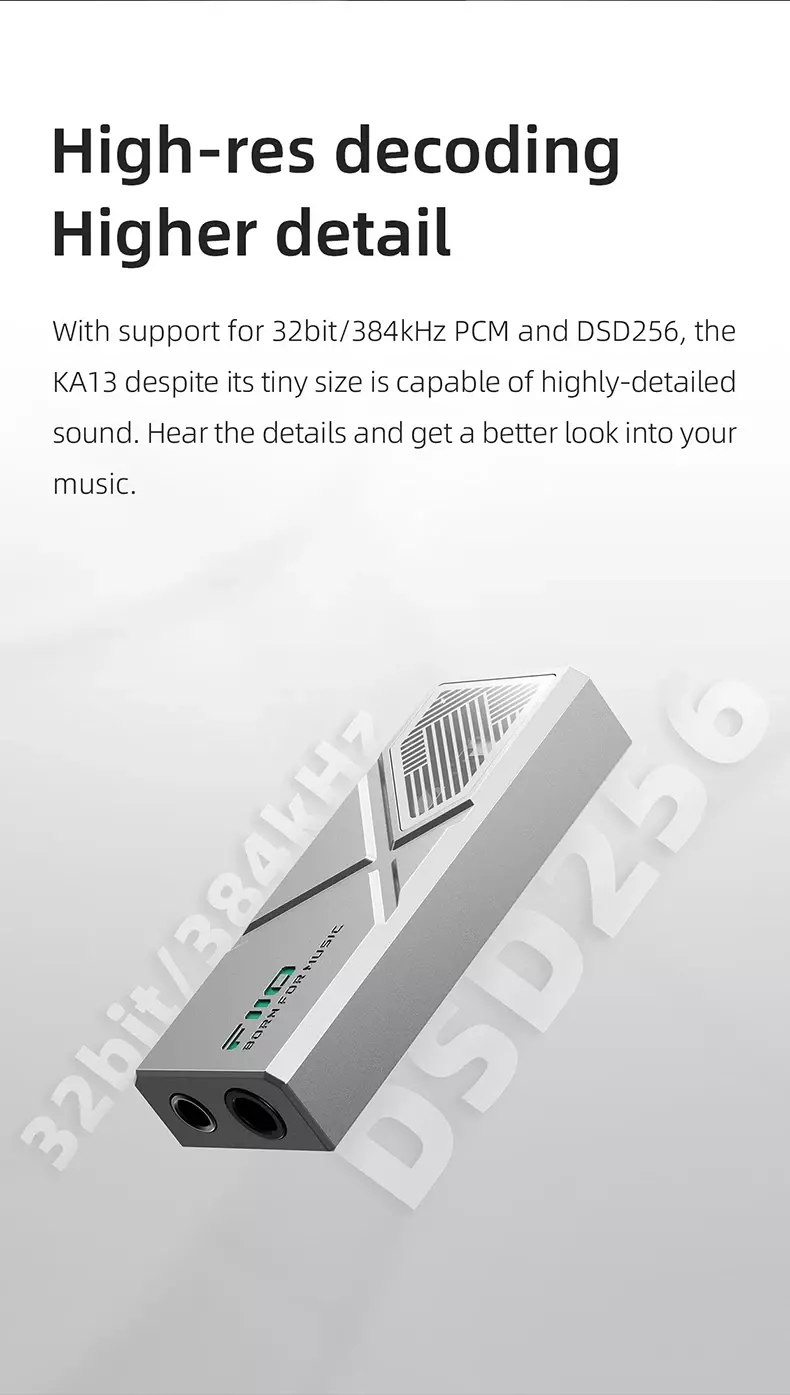

| Decoding Specifications | PCM Hires Audio 32Bit/384kHz, DSD256 |

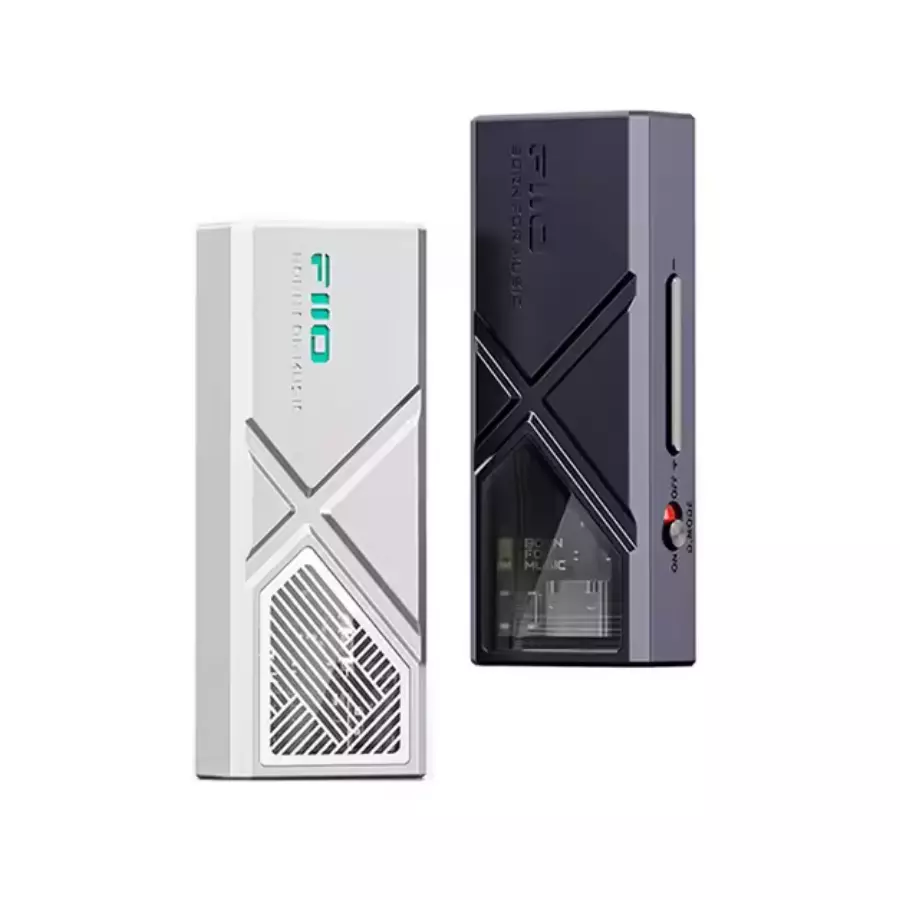

| Colors | Midnight black, Dawn silver |
| Output Power | Output power 1: L+R≥170mW+170mW (32Ω/single-ended/THD+N < 1%) Output power 2: L+R≥550mW+550mW (32Ω/balanced/THD+N < 1%) |
| Signal-to-noise Ratio | SNR 1: ≥ 123dB (32Ω/A-weighted/single-ended) SNR 2: ≥ 122dB (32Ω/A-weighted/balanced) |
| Noise Floor | PO < 1.7uV(A-weighted); BAL<3.1V (A-weighted) |
| THD+N | THD+N: < 0.0005% (single-ended) THD+N: < 0.0005% (balanced) |
| Output Impedance | Output impedance 1: < 1.7Ω (32Ω load/single-ended) Output impedance 2: < 1.8Ω (32Ω load/balanced) |

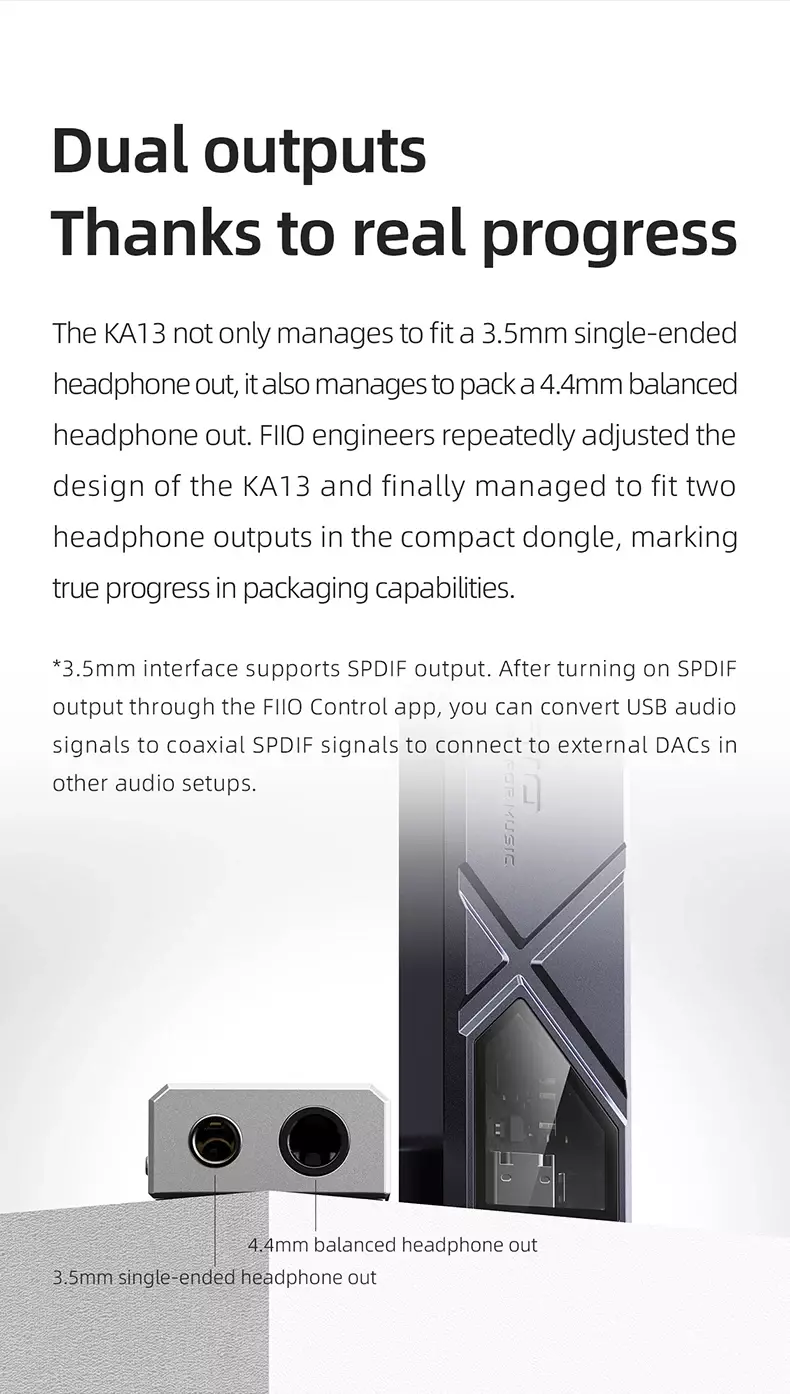

| Input-Output | Input: USB Type-C 2.0, Output: 3.5mm SE and 4.4mm Balanced |
| Other | Dimensions: About 56.3*22*10.5mm Weight: About 18.5g (excluding cable) |
